It’s time to enclose your ODS board, screen, and encoder in an rugged case that includes a mount for your reader and more.

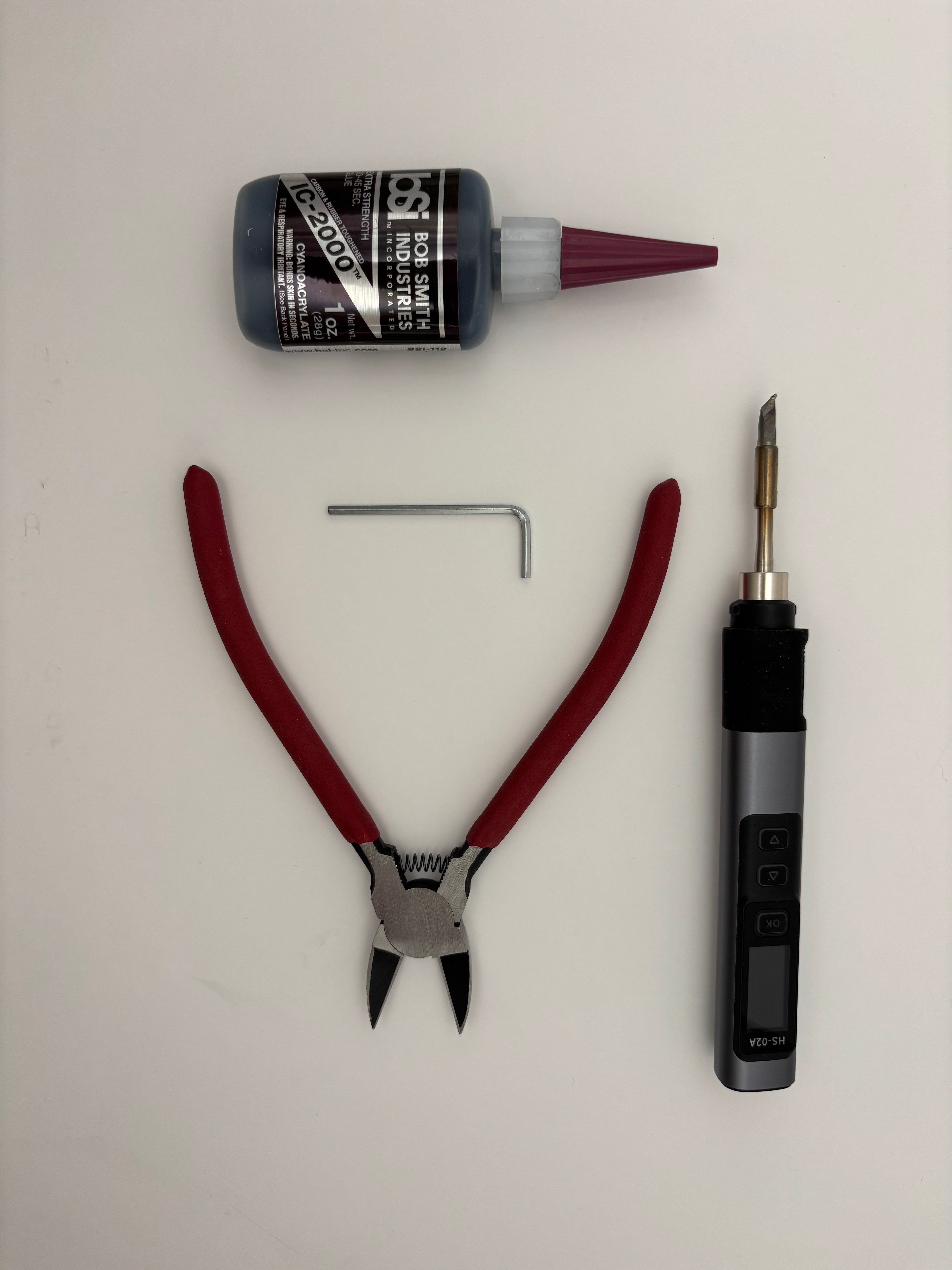

Tools Needed

  • Wire Cutters
  • Soldering Iron + Solder
  • 2.5mm Allen Key
  • Industrial Superglue
IMG 5914

Parts Needed

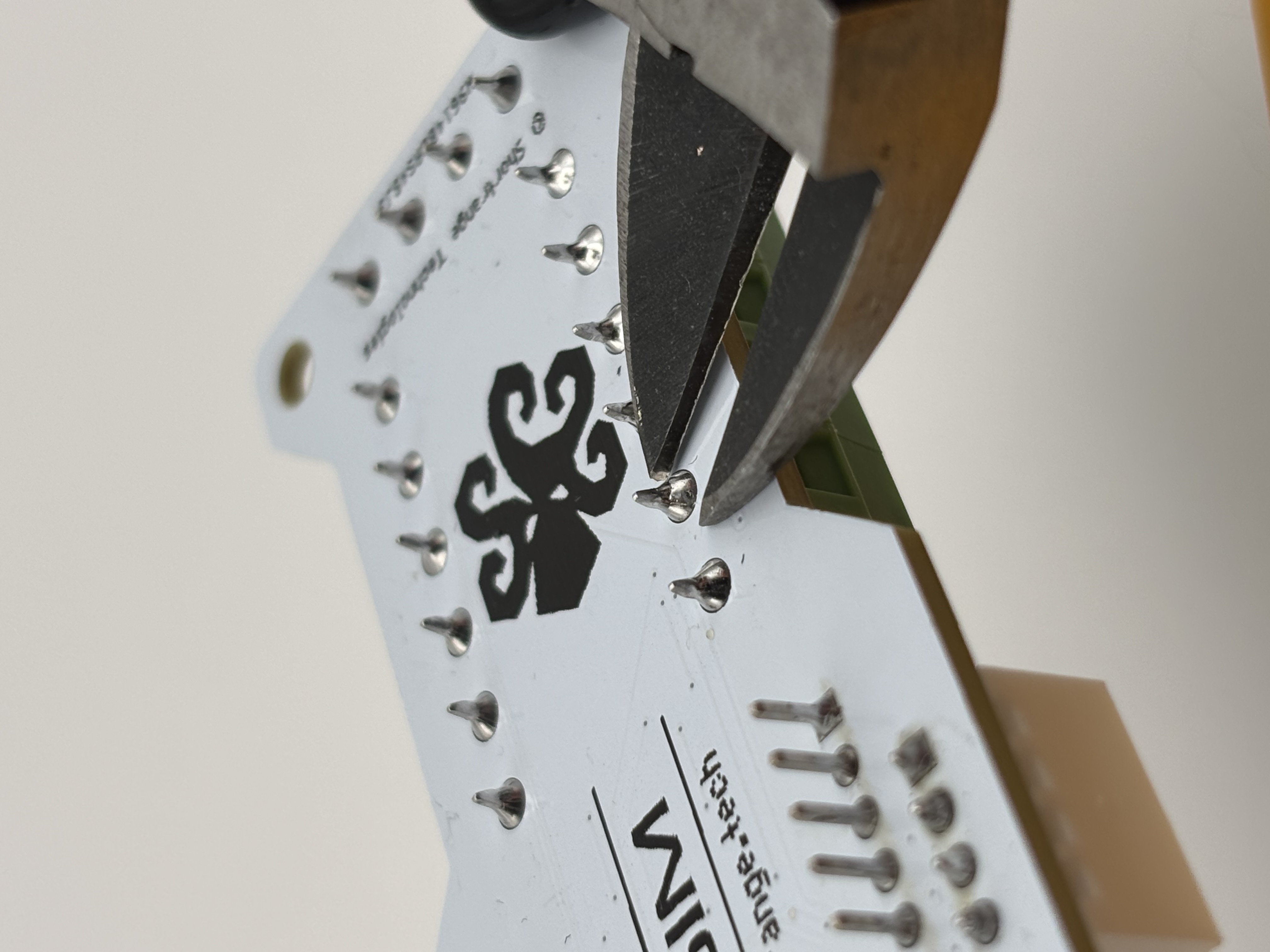

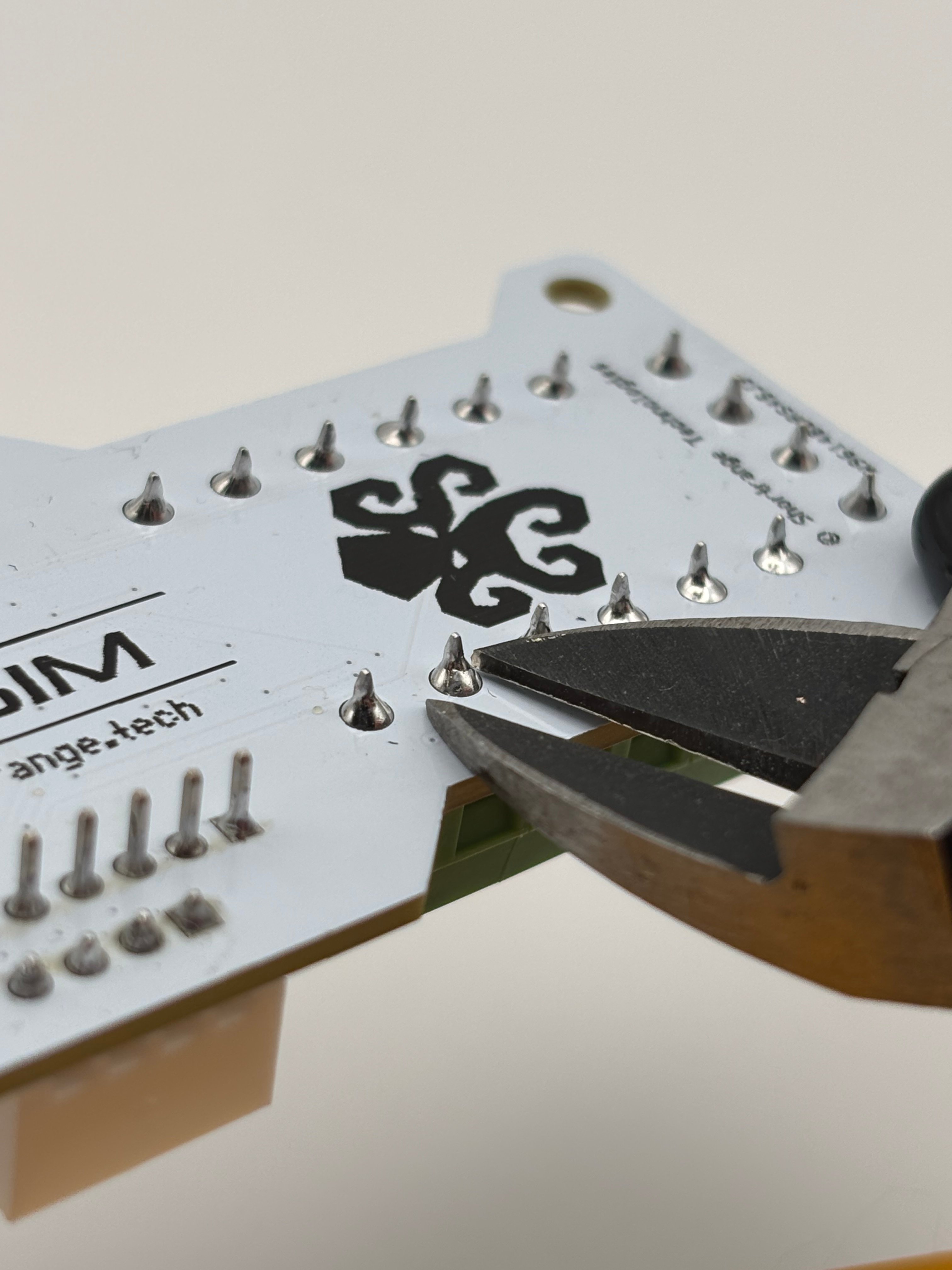

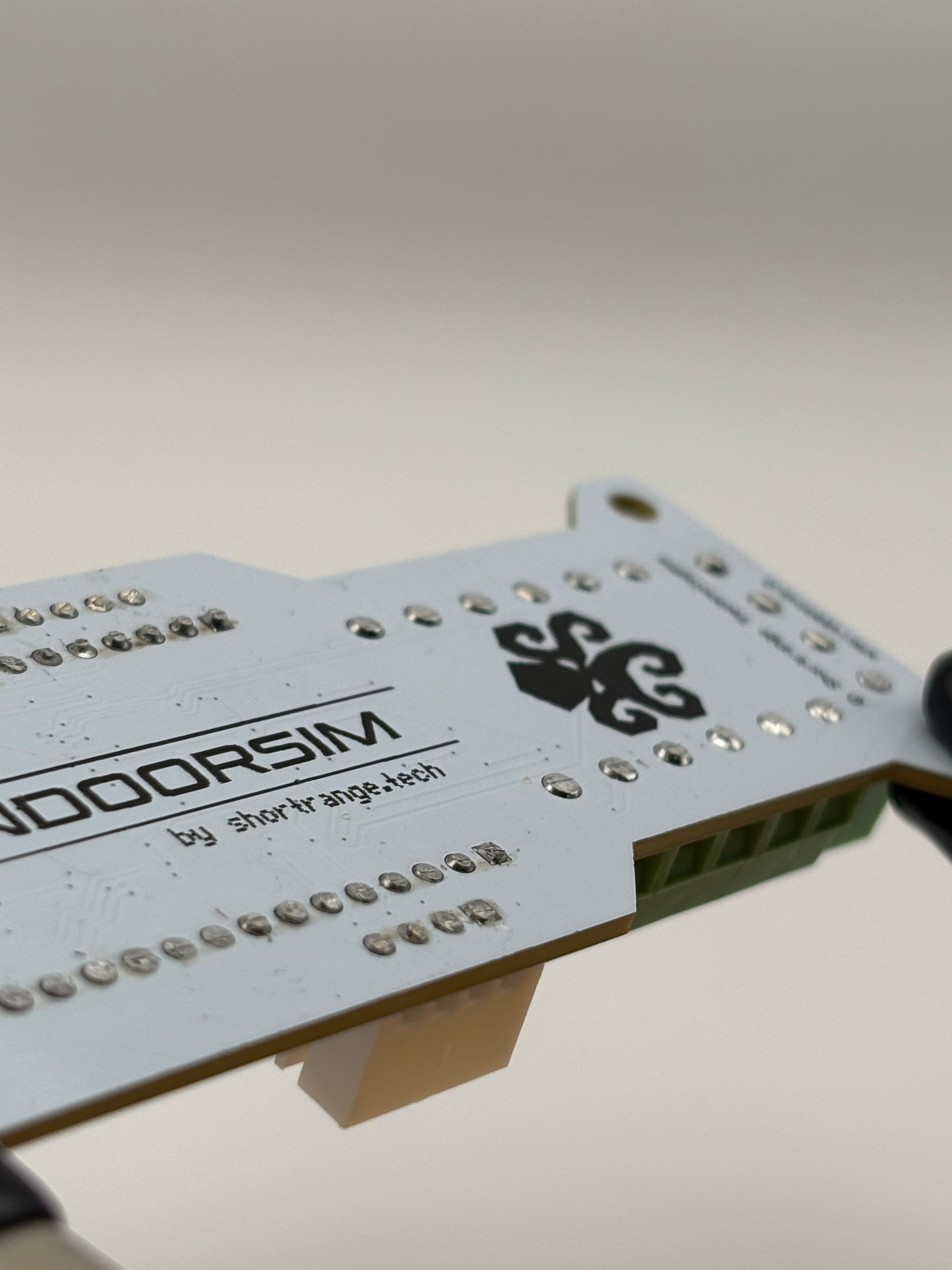

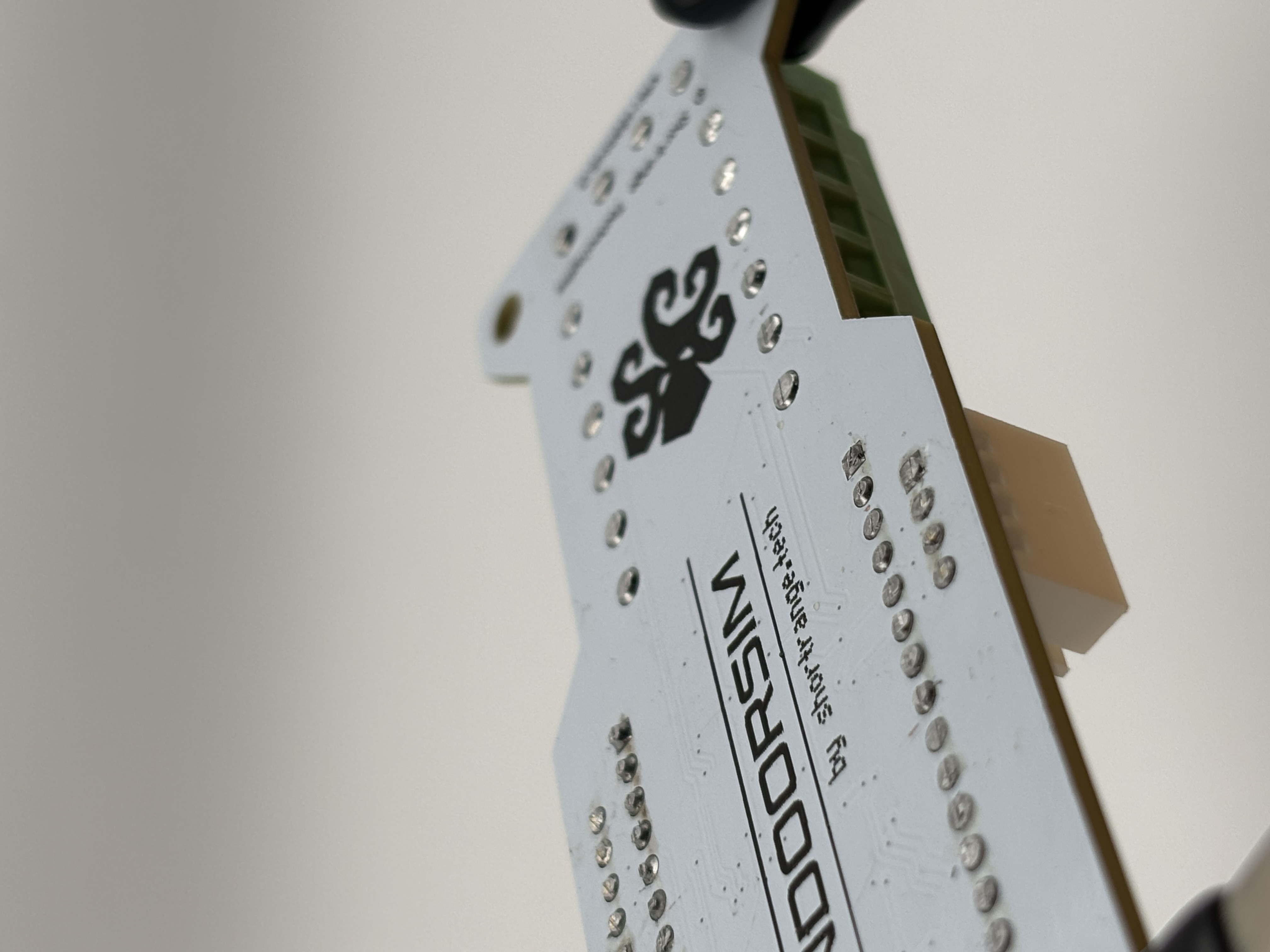

Pre-Built OpenDoorSim Board

Either from the official kit or self-manufactured.

Built Screen and Encoder

Using parts from the kit or self ordered, and built following the previous build guide.

LAB Kit Case Parts

The kit comes with all parts needed for the following steps.If you want to double check you have the parts, or don’t have a kit, or are self-ordering, check out the Lab Case’s Bill of Materials.

Build Guide

STEP ONE: MAGNETS

Official kits come with the decal tile already assembled.
Avoid snapping magnets together as they may break from impact.
1

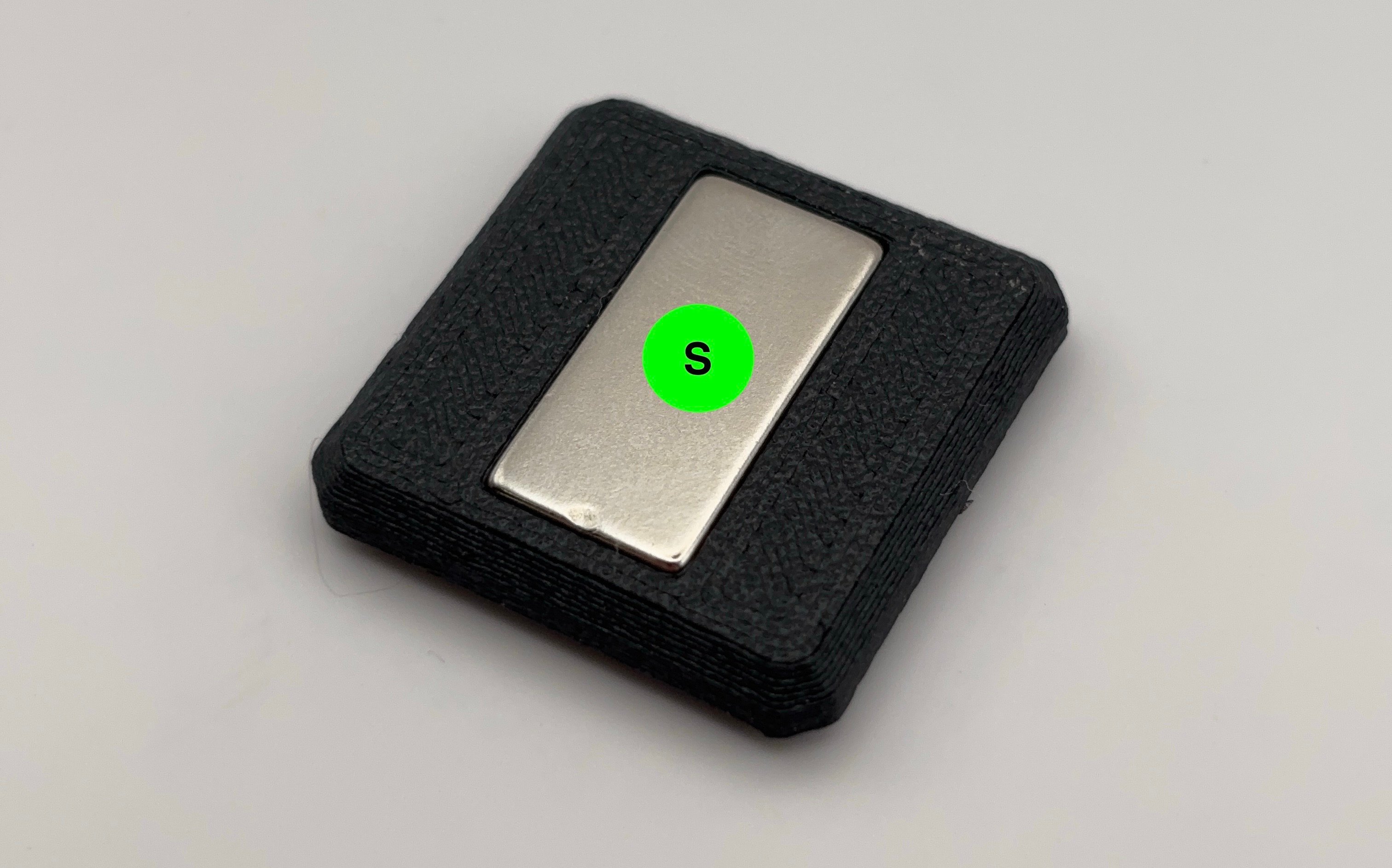

Install Decal Tile Magnet

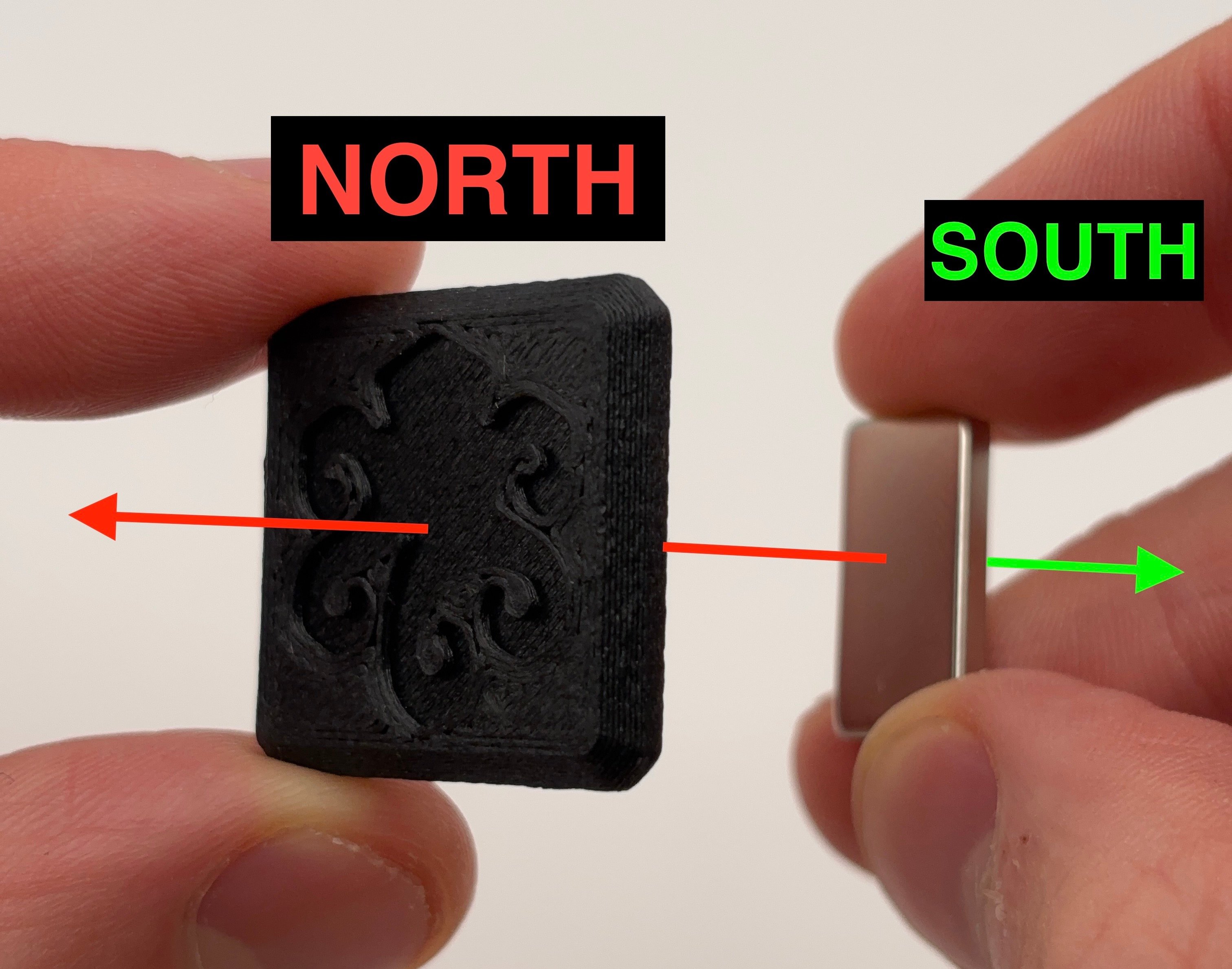

Insert 1x thin magnet (20x10x3) into the decal tile.North side should face in and towards the logo.Once inserted, only the south face of the magnet should be visible.
IMG 5976
IMG 5953 1
2

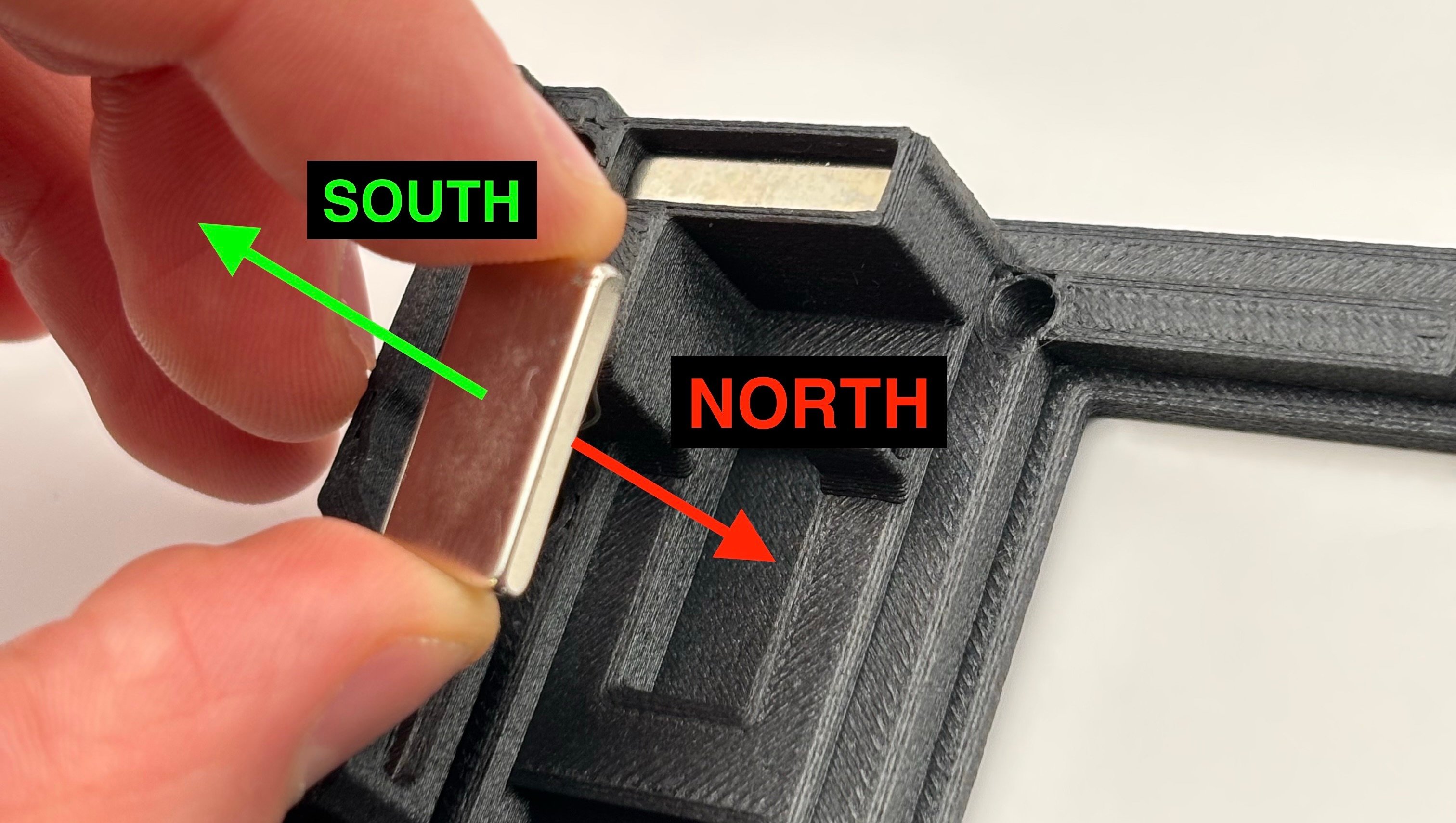

Install Decal Tile Mount Magnet

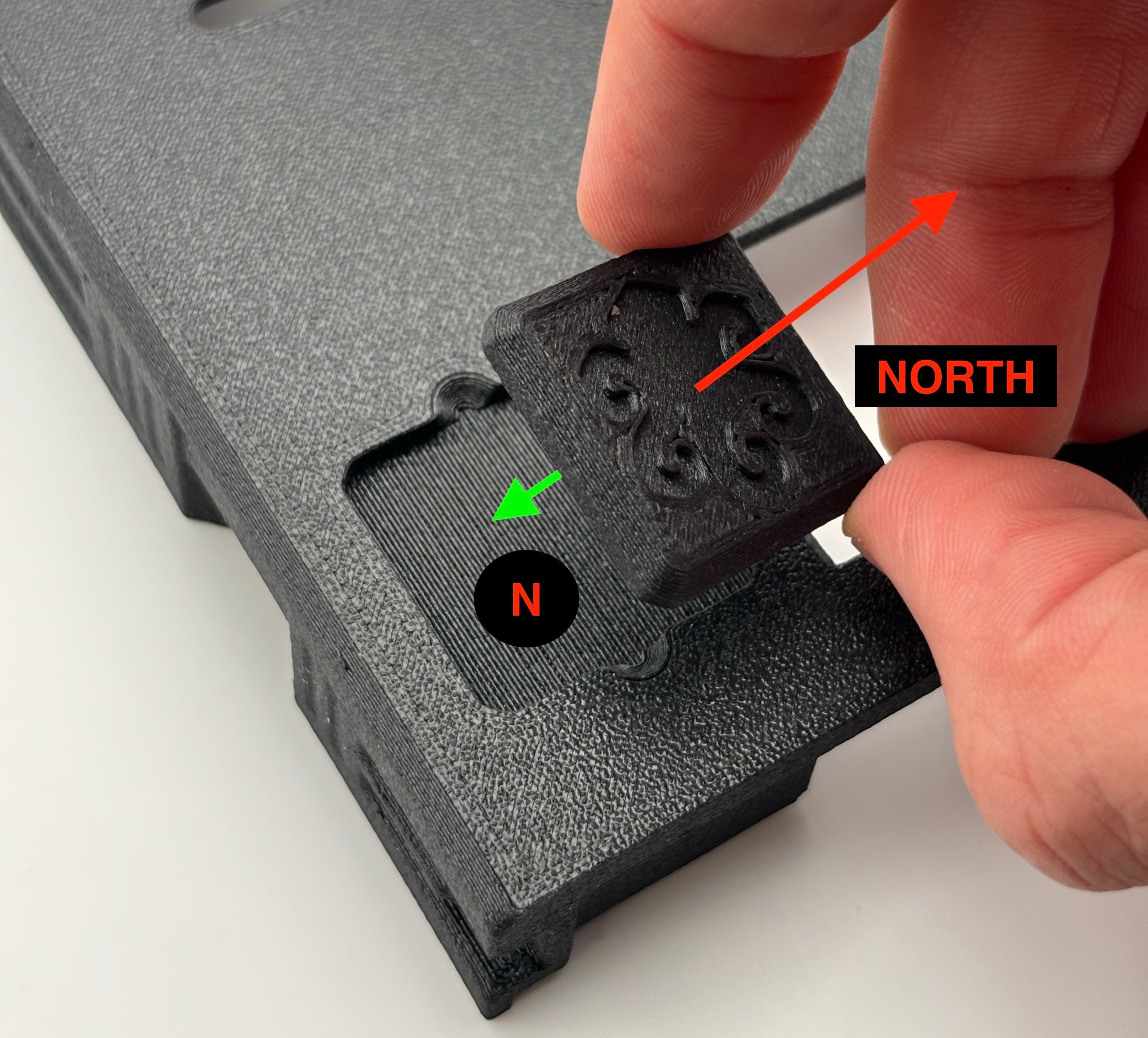

Insert 1x thin magnet (20x10x3) into the case body for the decal tile mount.North side of the magnet should face out and away from the case. This magnet serves to snap the decal tile to the case.Once inserted, the decal tile should snap to the case!
IMG 6021
IMG 6023
3

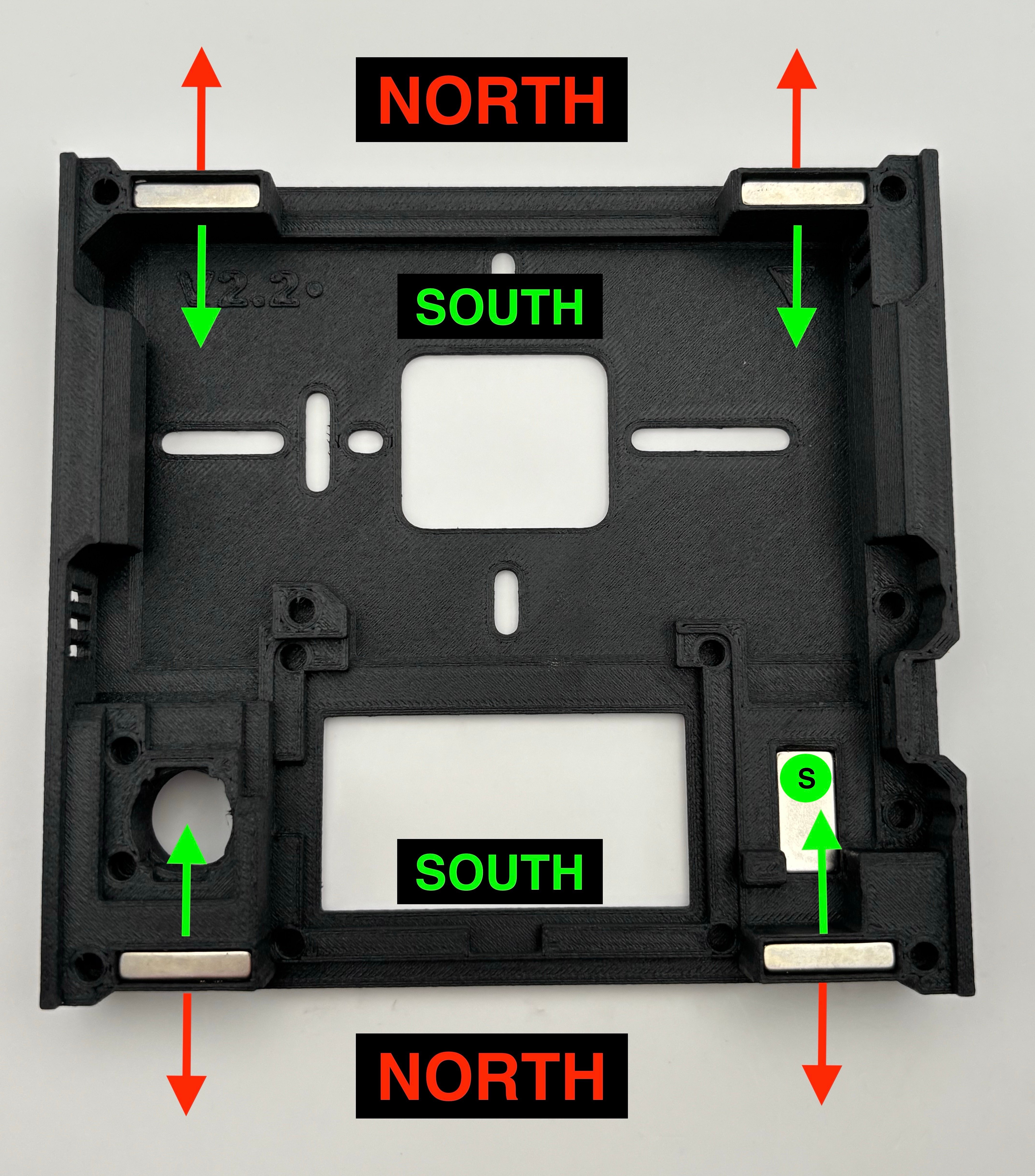

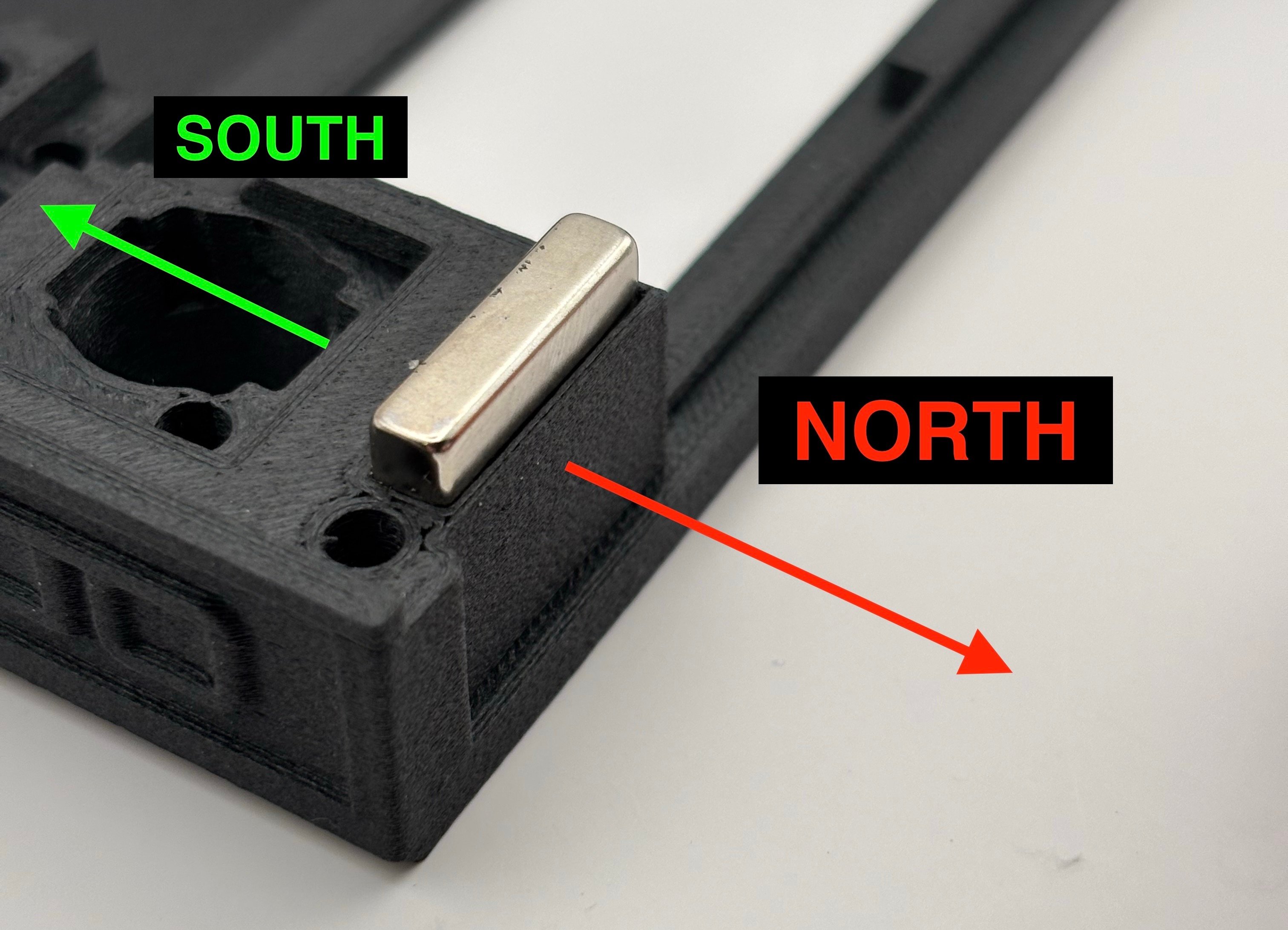

Install Module / End Cap Mount Magnets

Insert 4x thick magnets (20x10x3) into the case body for the module mounts.North faces should go out and away from the case.
IMG 6015
IMG 6024
4

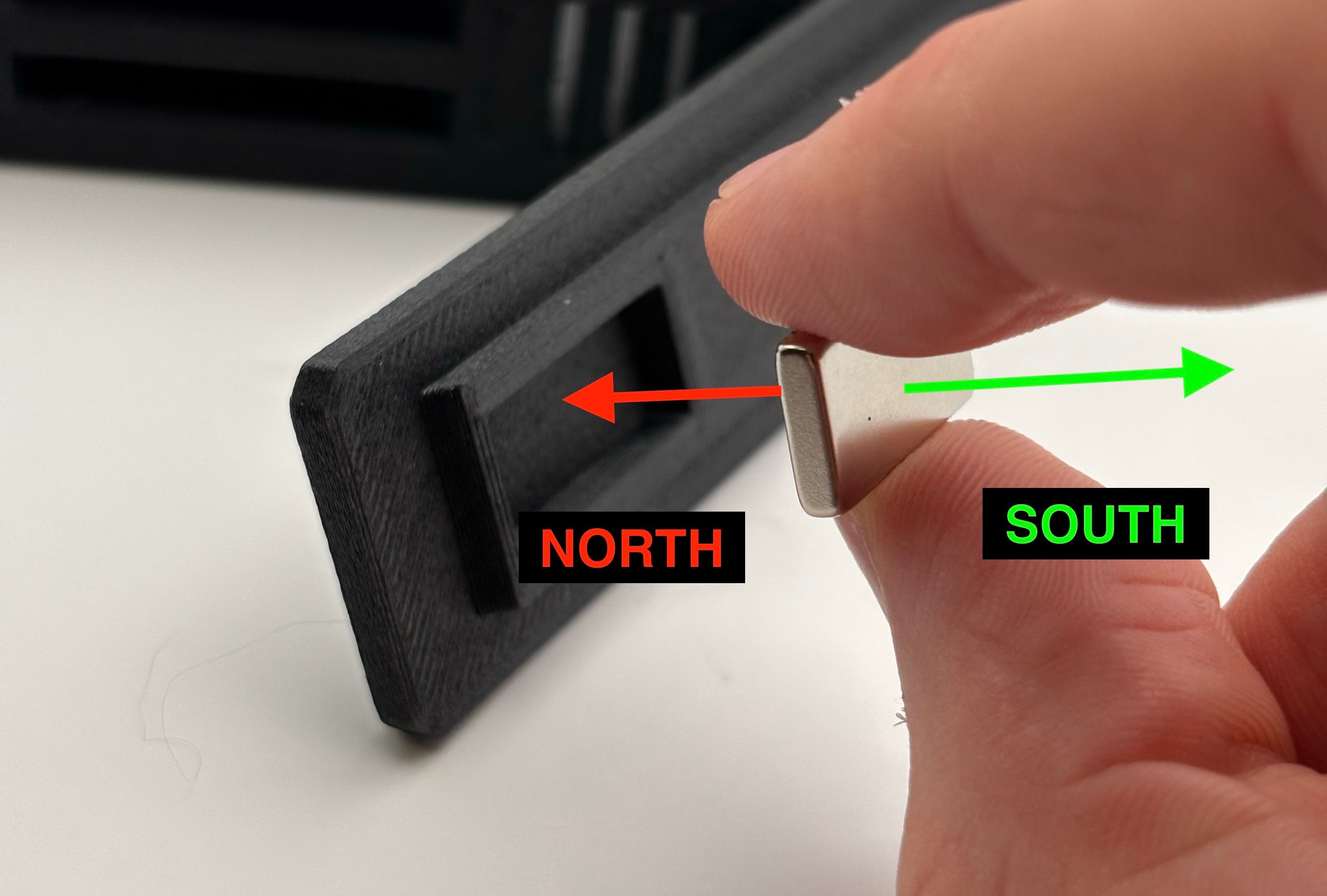

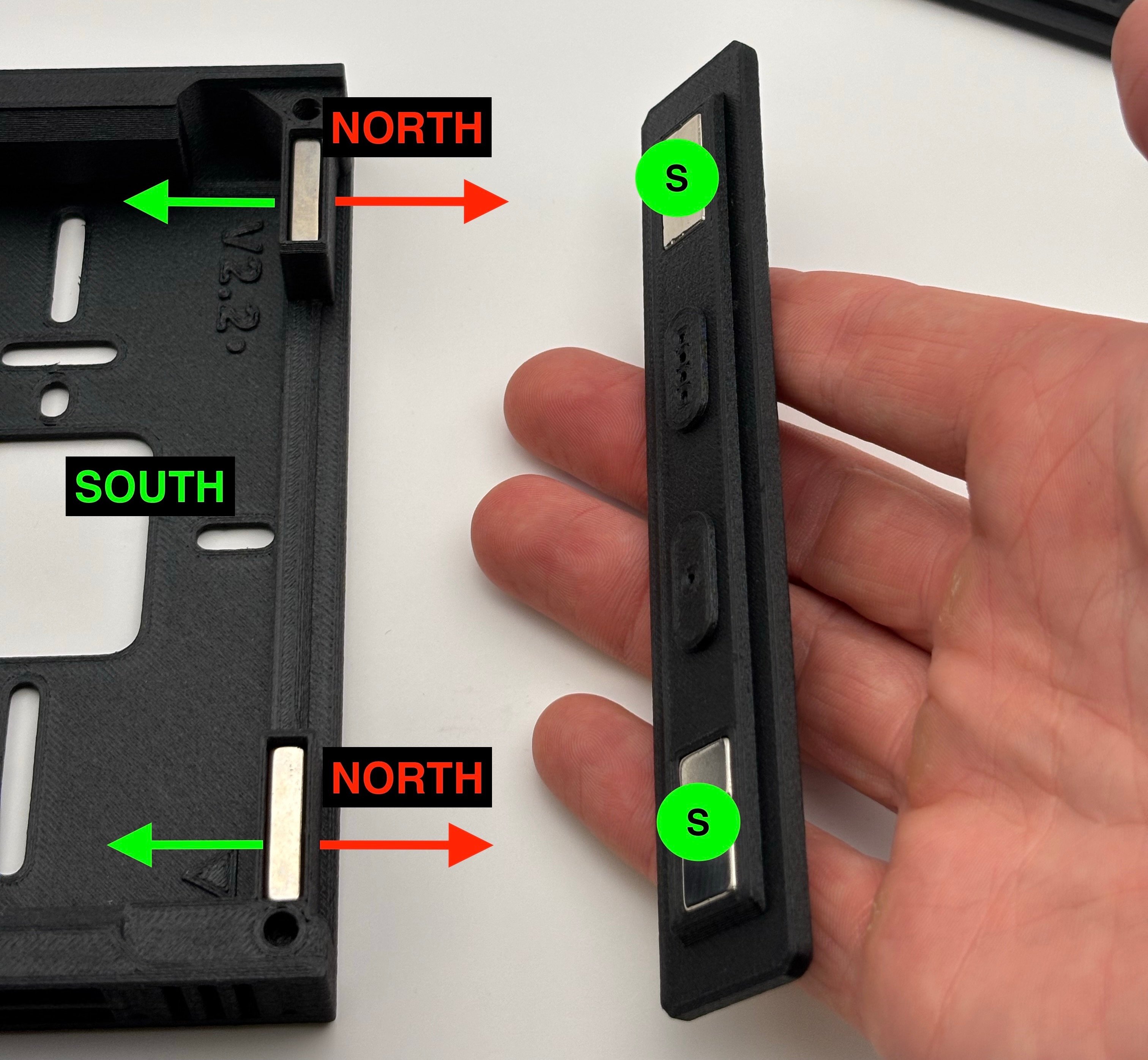

Install End Cap Magnets

Insert 4x thin magnets (20x10x3) into the end caps.Only the south side of the magnet should be visible after insertion.After insertion, test that the end caps snap to the case!
If magnets do not stay seated in the end caps, use some industrial superglue.
IMG 6029
IMG 6030
5

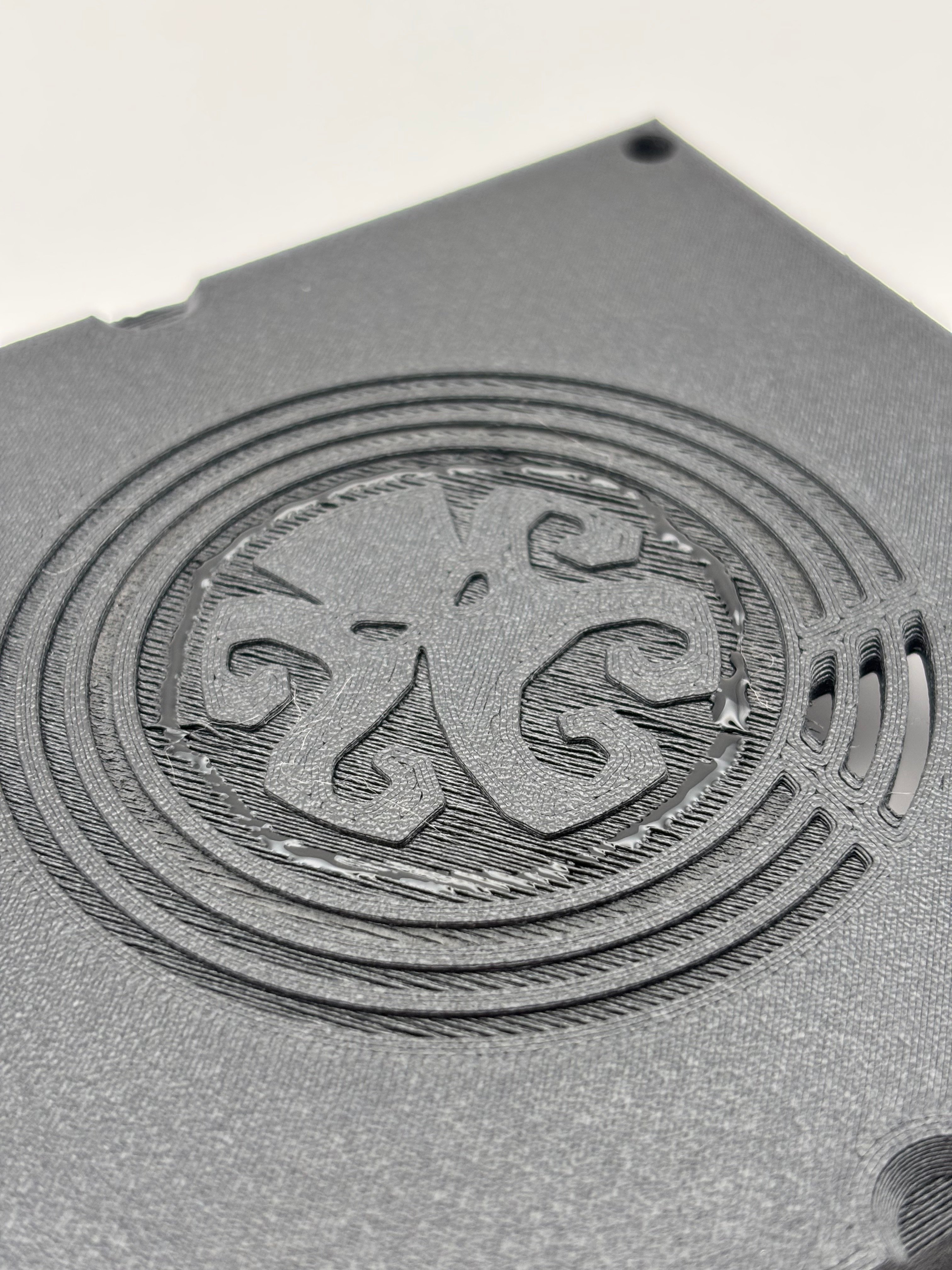

Install Mag Ring

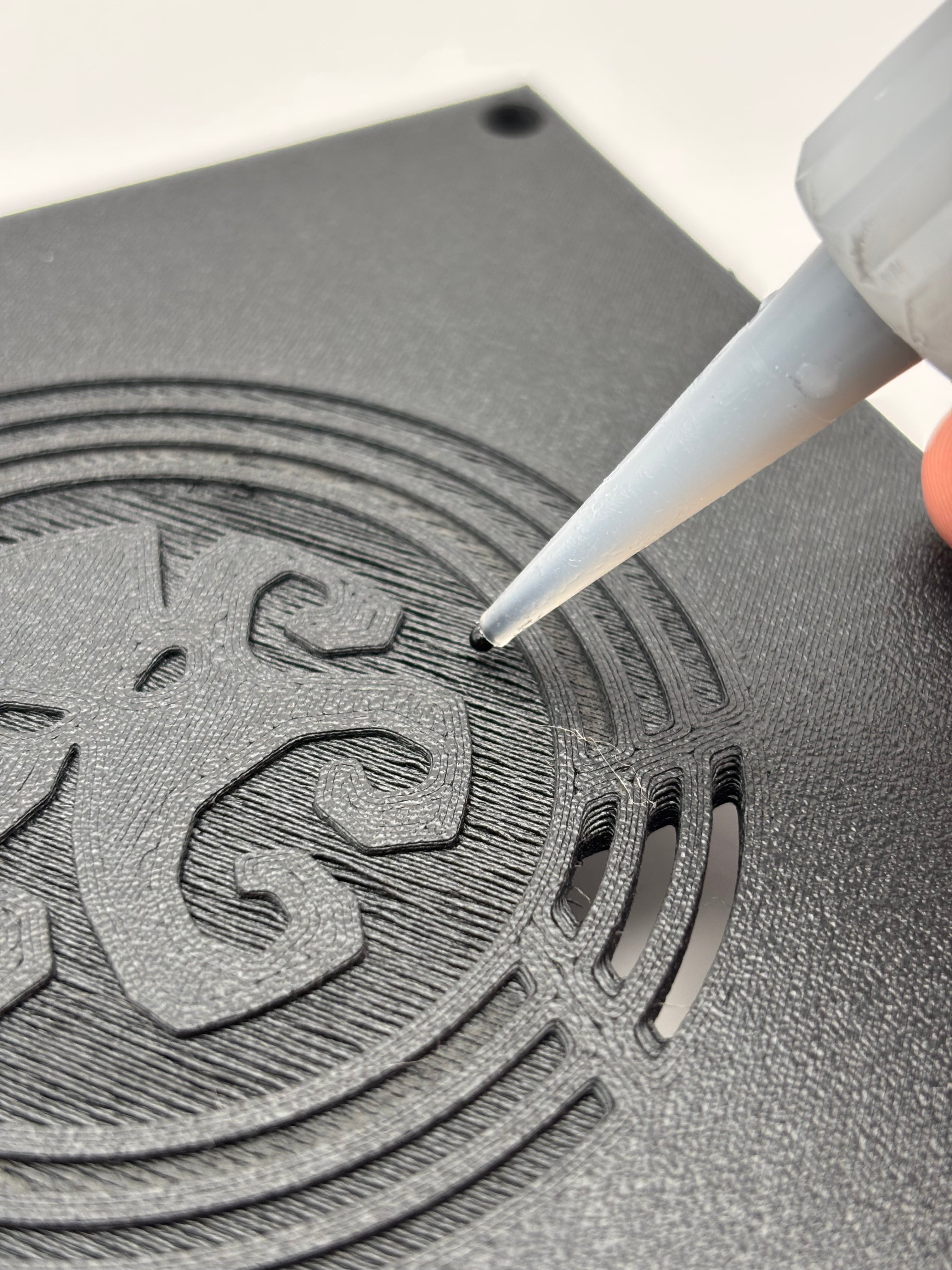

Lay down a very thin line of industrial superglue in the ring circle on the case lid.
IMG 6051
IMG 6052

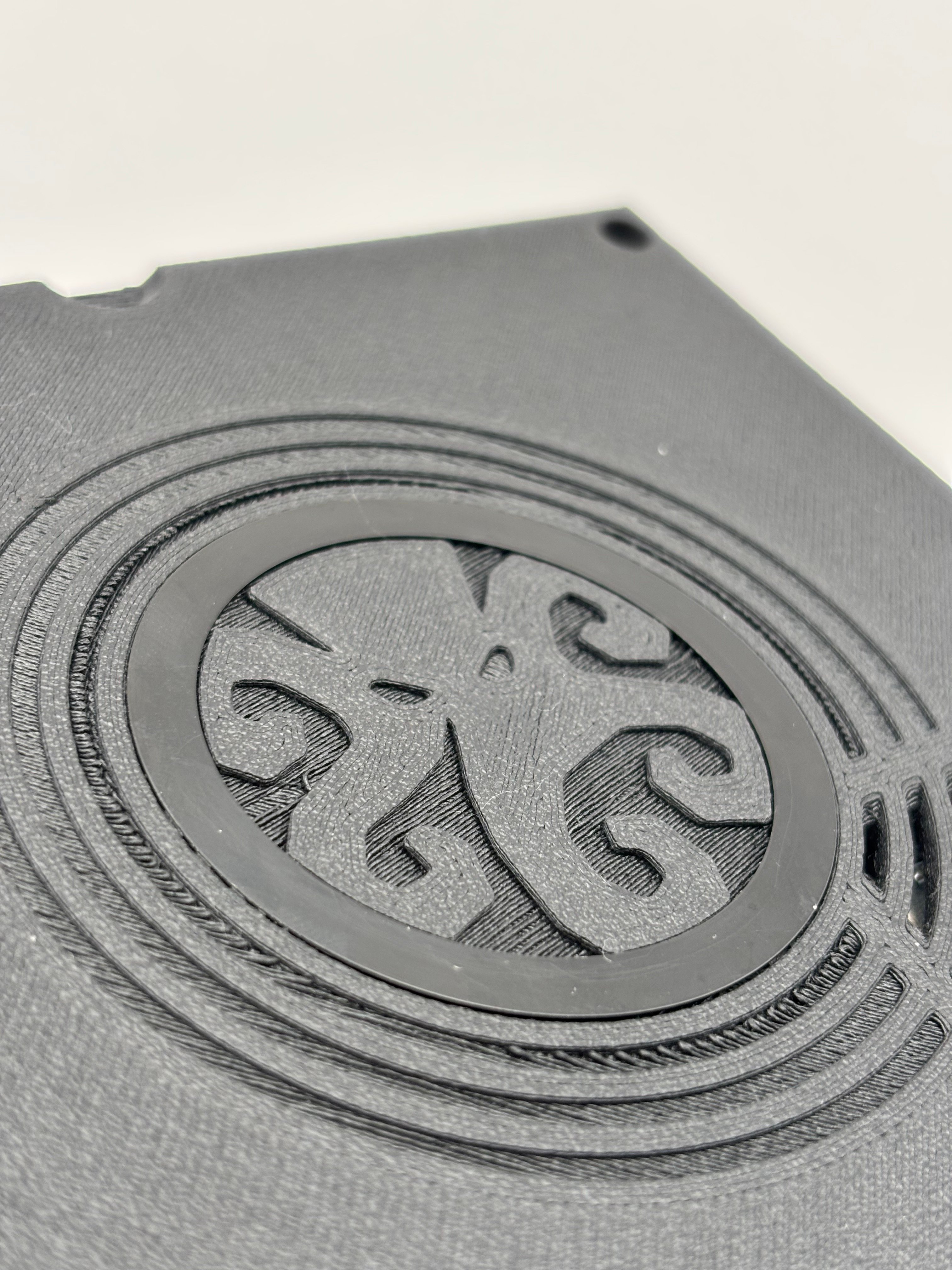

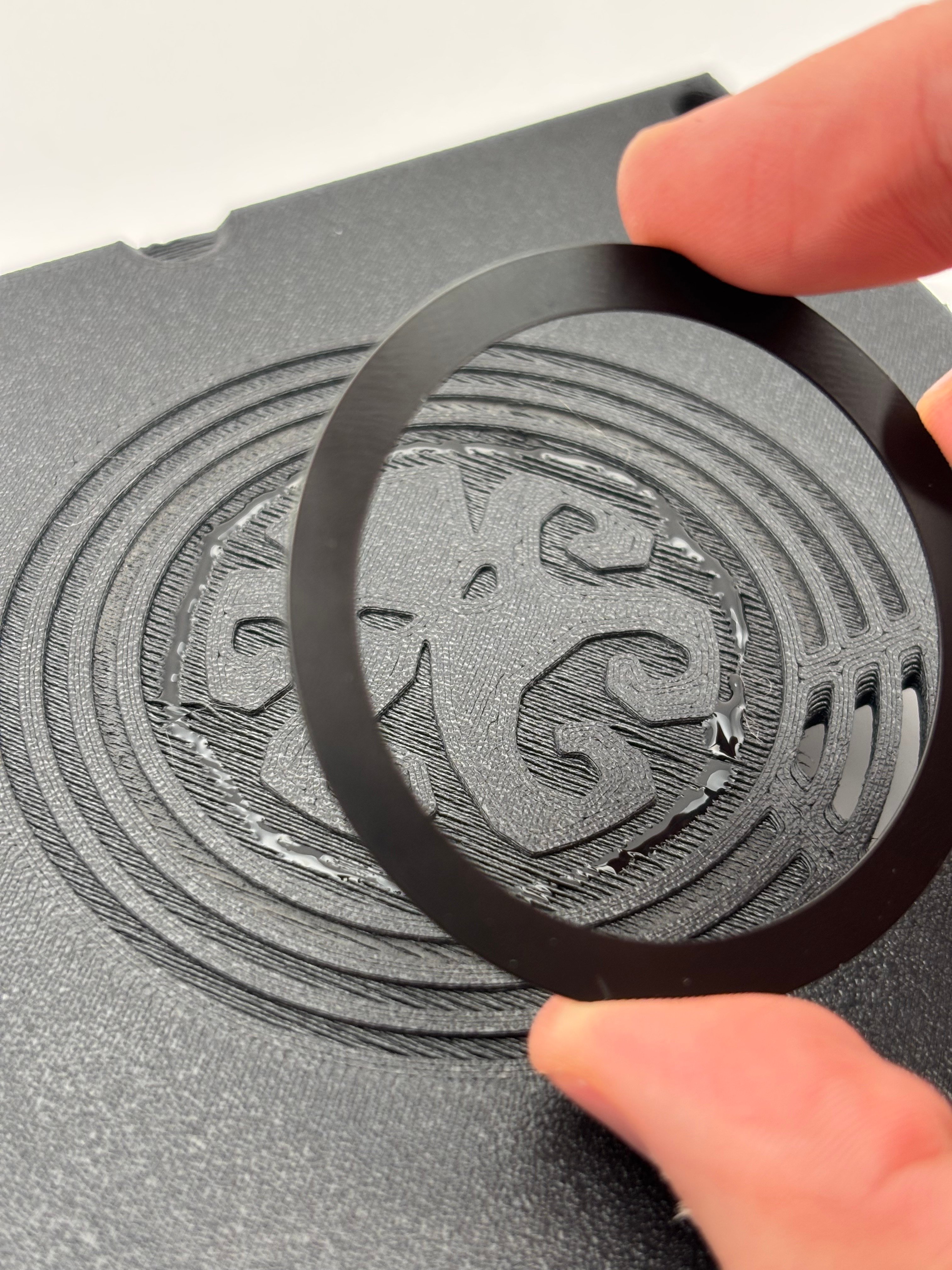

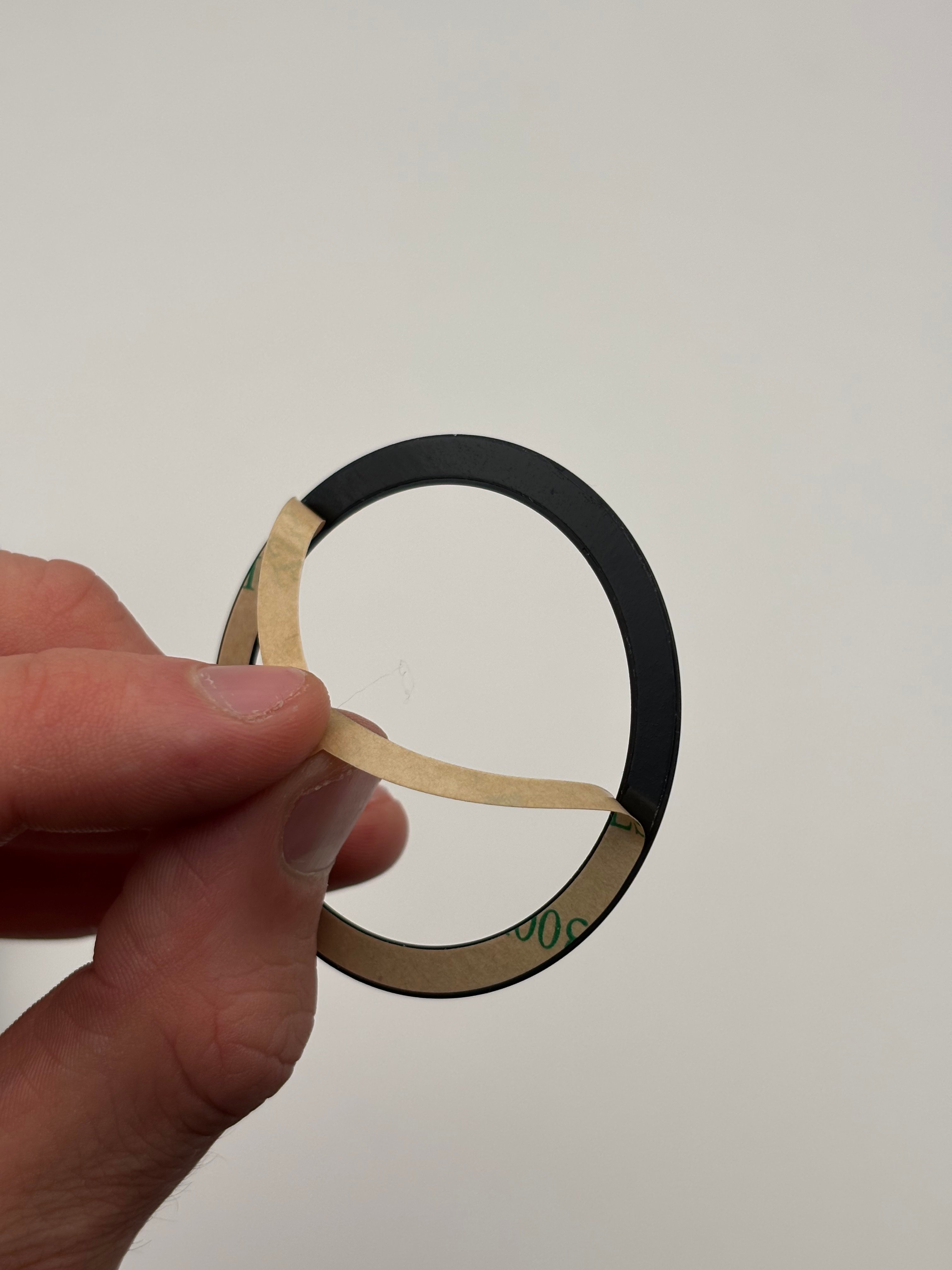

Remove backing from magnetic ring, align, and install.
IMG 6047
IMG 6054
IMG 6056

STEP TWO: THREADED INSERTS

Plastic gives off harmful fumes when heated or burned. Work in a well ventilated area and avoid direct inhalation.
1

Align Threaded Inserts

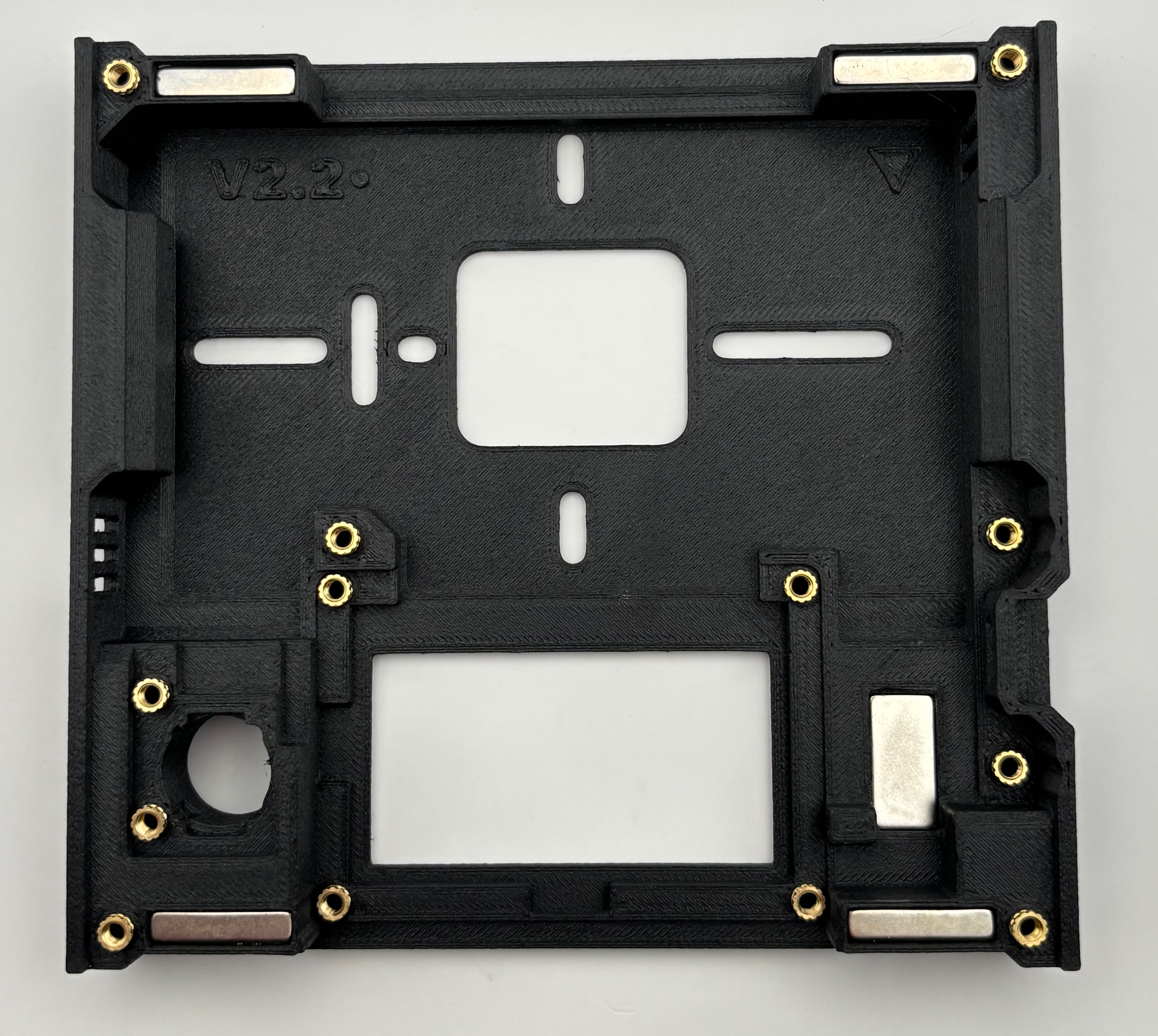

Align 13x threaded inserts over the insert holes. The small end of the insert should set nicely in the insert hole.
IMG 6037
2

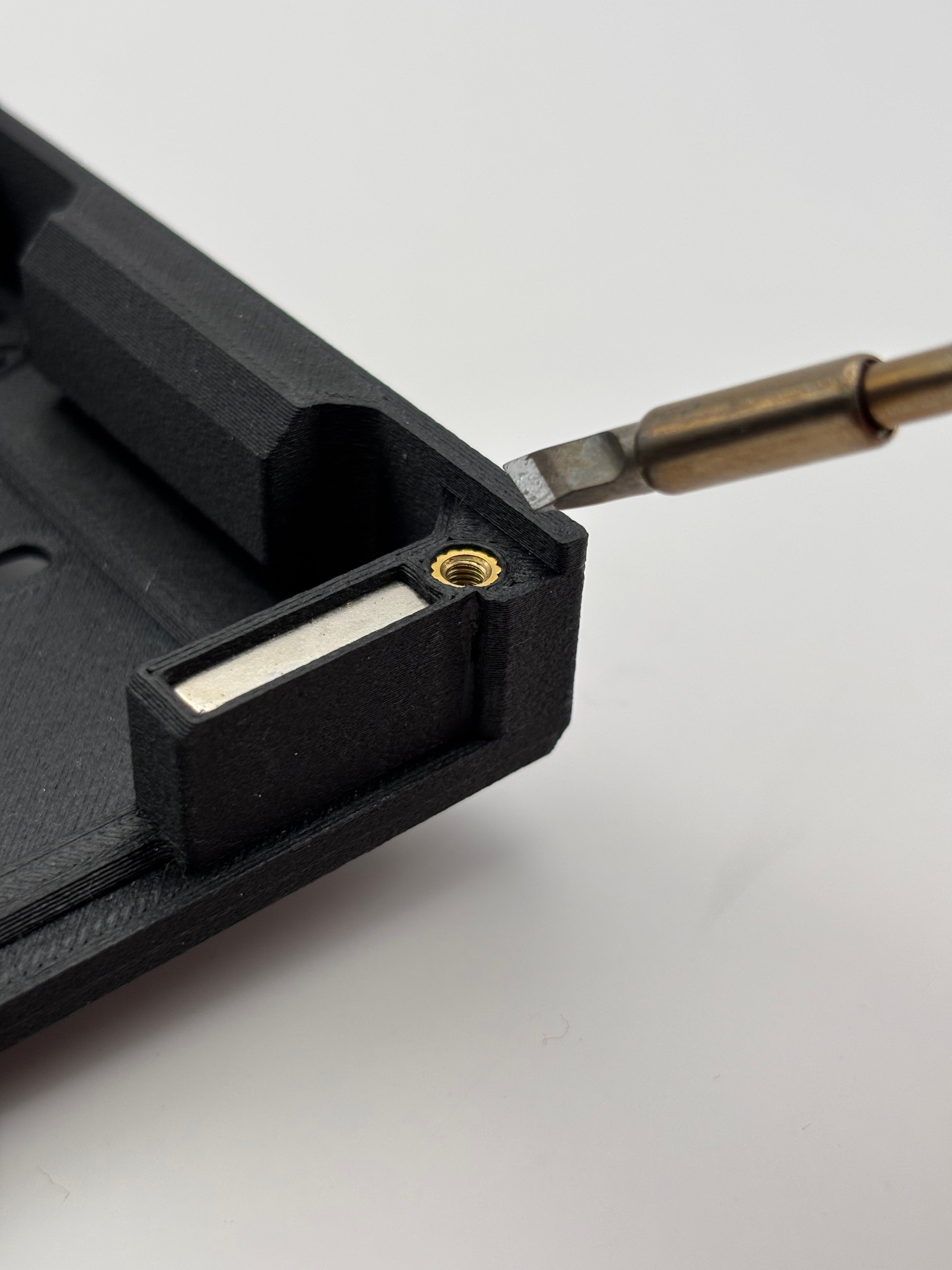

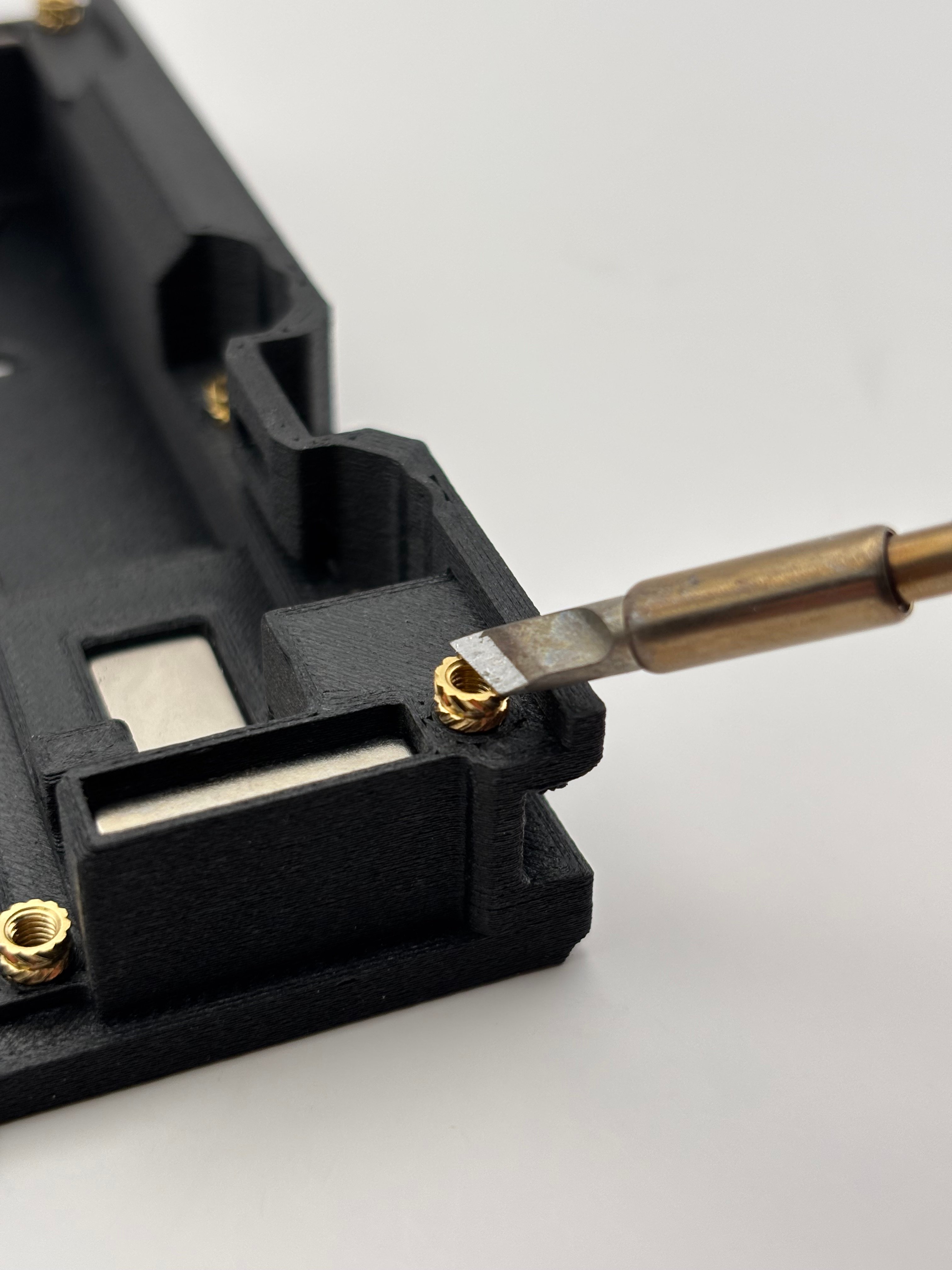

Heat Press Threaded Inserts

Once inserts are aligned, heat press with a soldering iron or threaded insert press. Inserts should end up flush or slightly under the body line.
IMG 6040
IMG 6042

STEP THREE: COMPONENTS

1

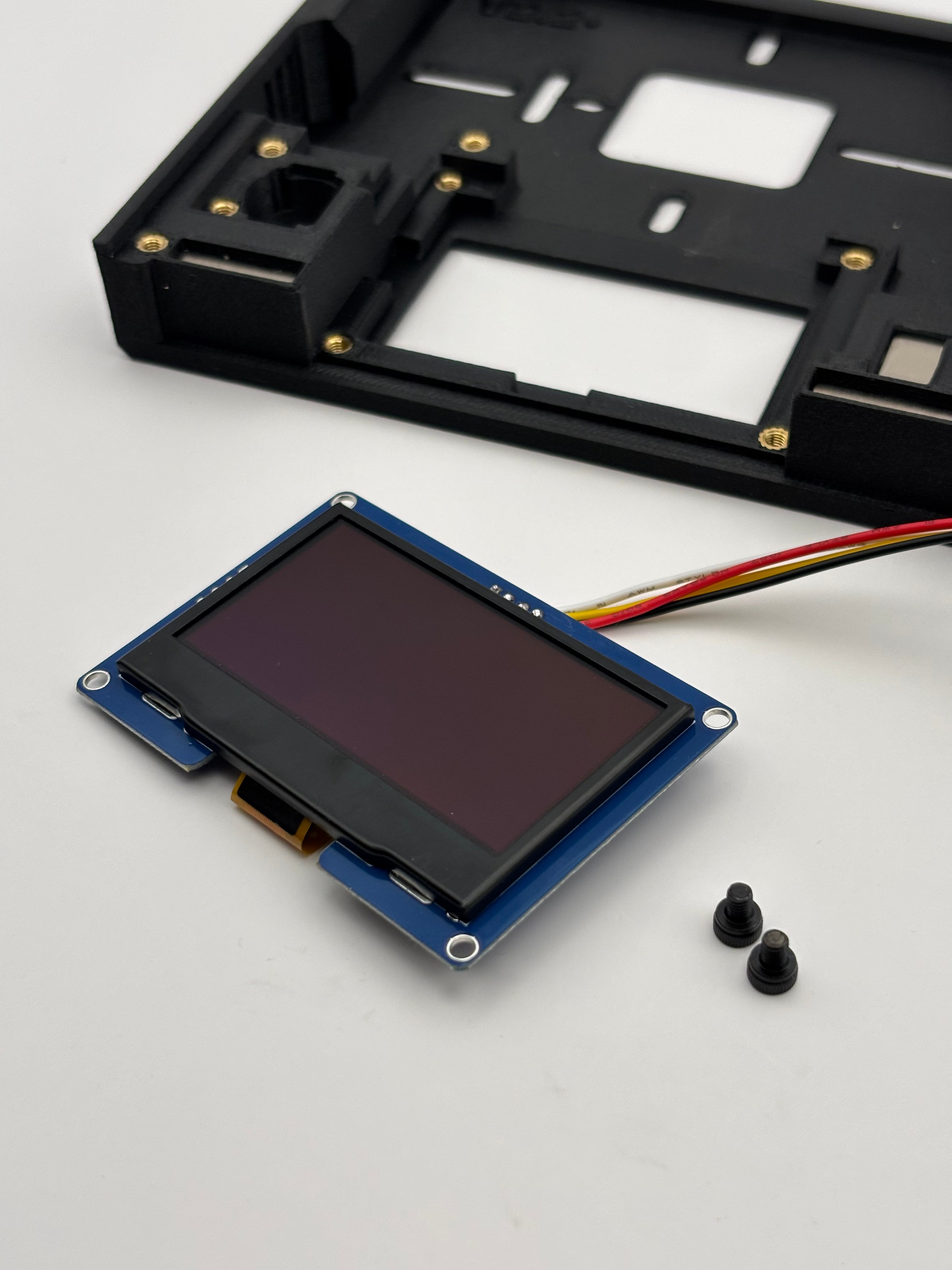

Install OLED Screen

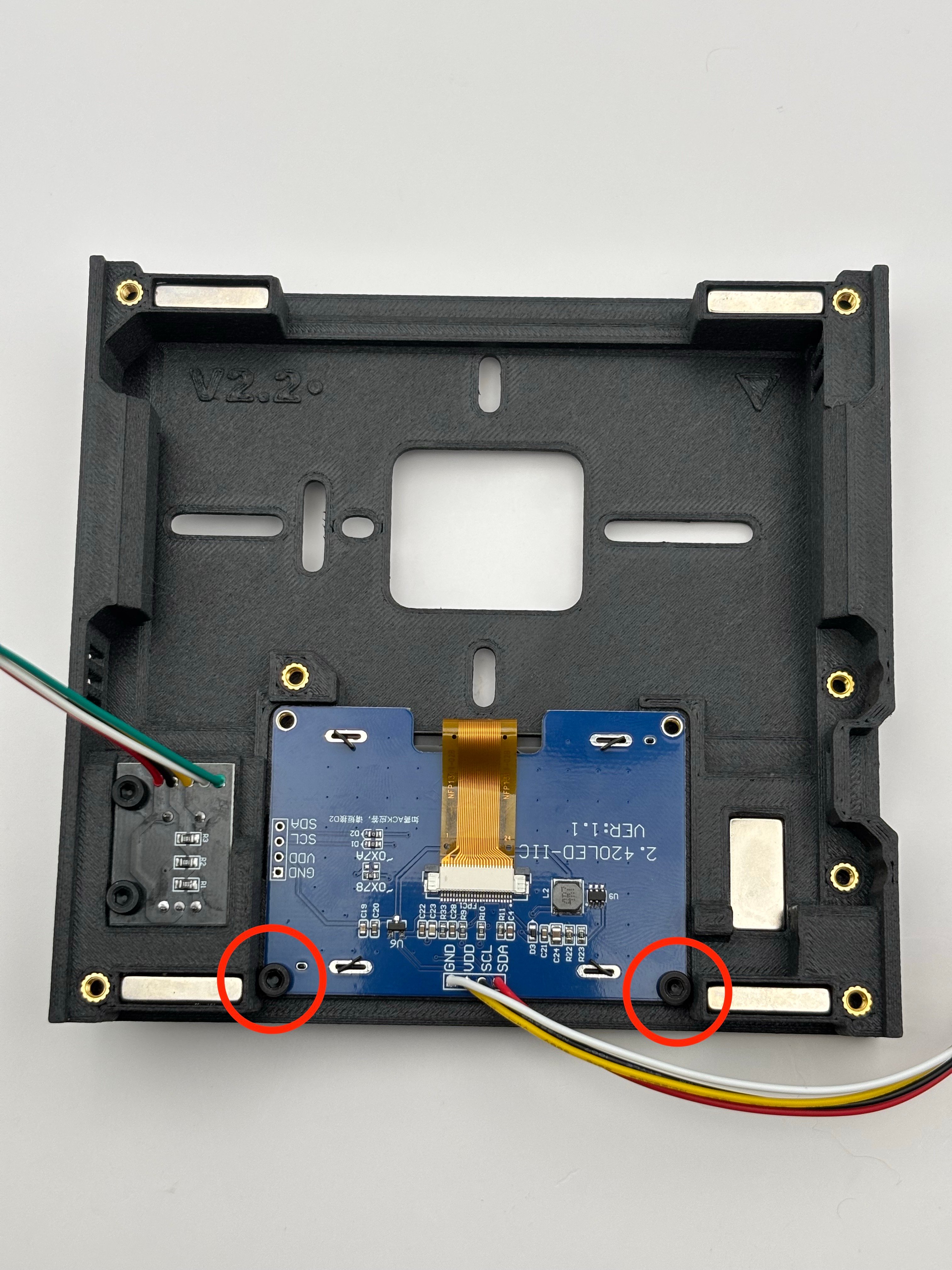

Mount the OLED screen using 2x short screws (M3x4) on the outermost mounting holes, leaving the innermost mounting holes clear to allow for other components.
Mounting the OLED using the two innermost holes will make it so your other components do not sit flush. If you wish to use those threads, obtaining a flatter or lower profile screw would allow for sufficient clearance. We have found mounting the screen with the outermost holes to be sufficient.
IMG 6058
IMG 6066
2

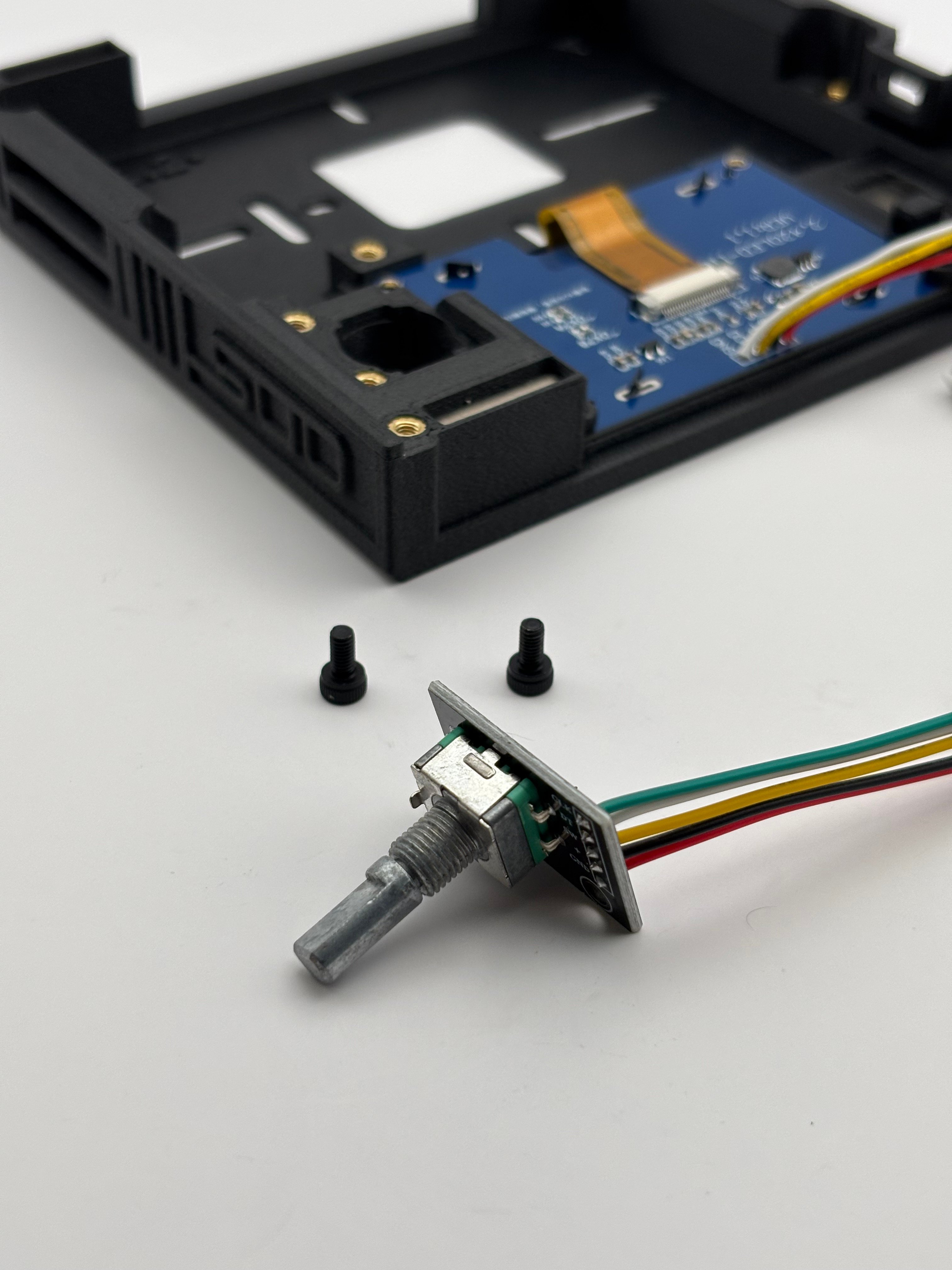

Install Encoder and Knob

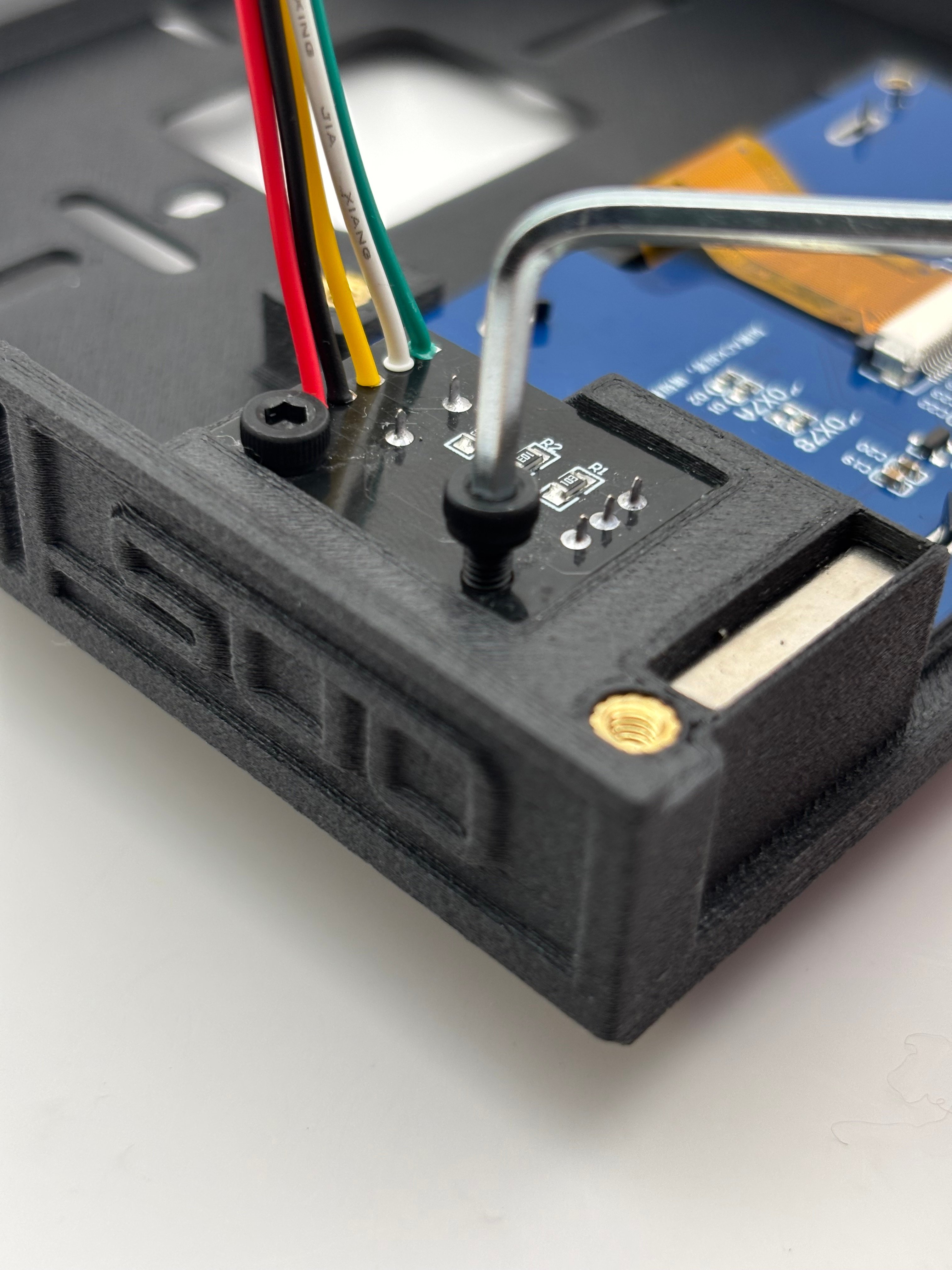

Mount the encoder using 2x long screws (M3x6).
IMG 6063
IMG 6065
Once mounted, slide the knob on the encoder post from the other side.
3

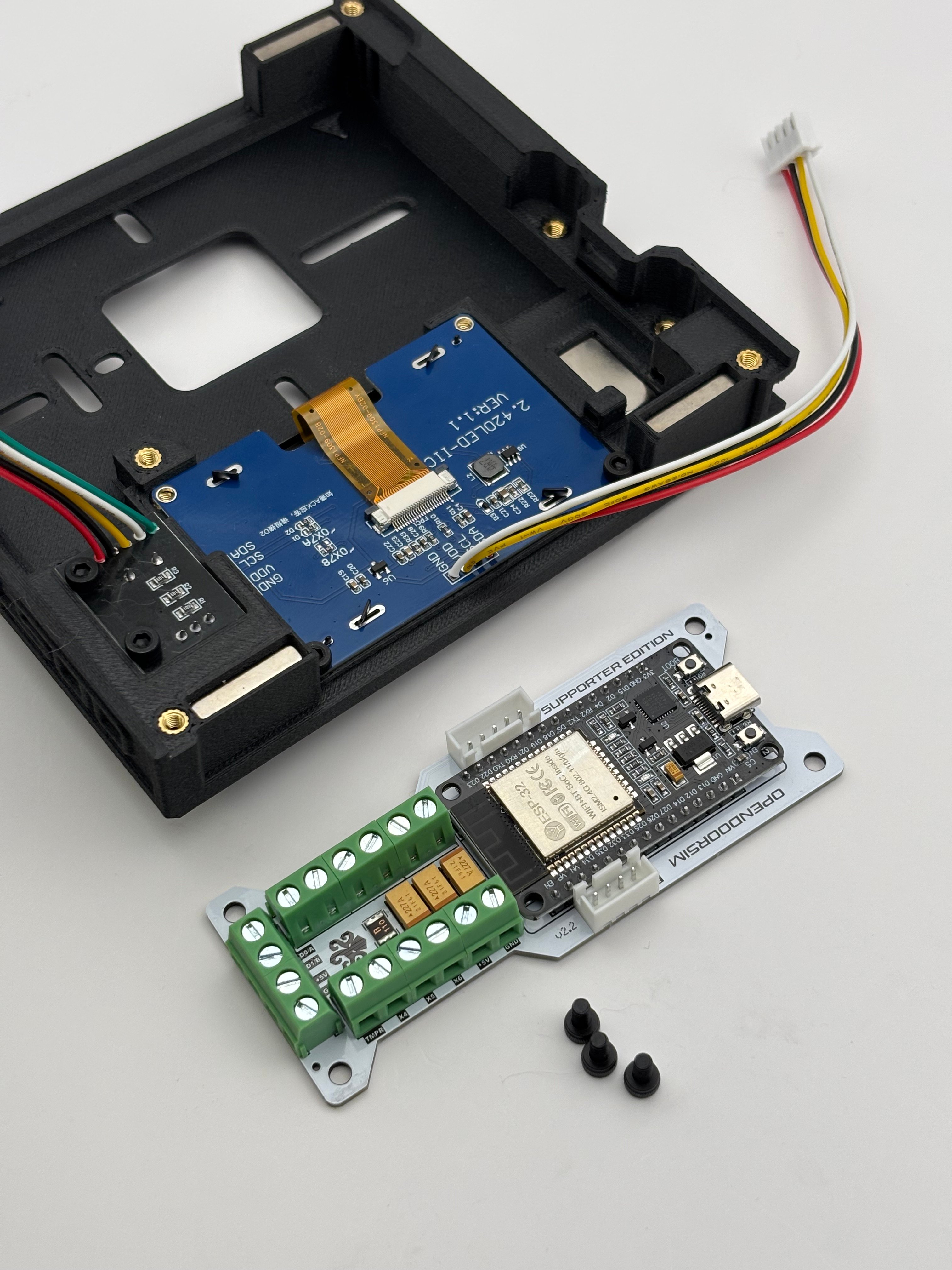

Install OpenDoorSim Board

You may want to jump forward one step and connect your reader to the ODS board before fully mounting.

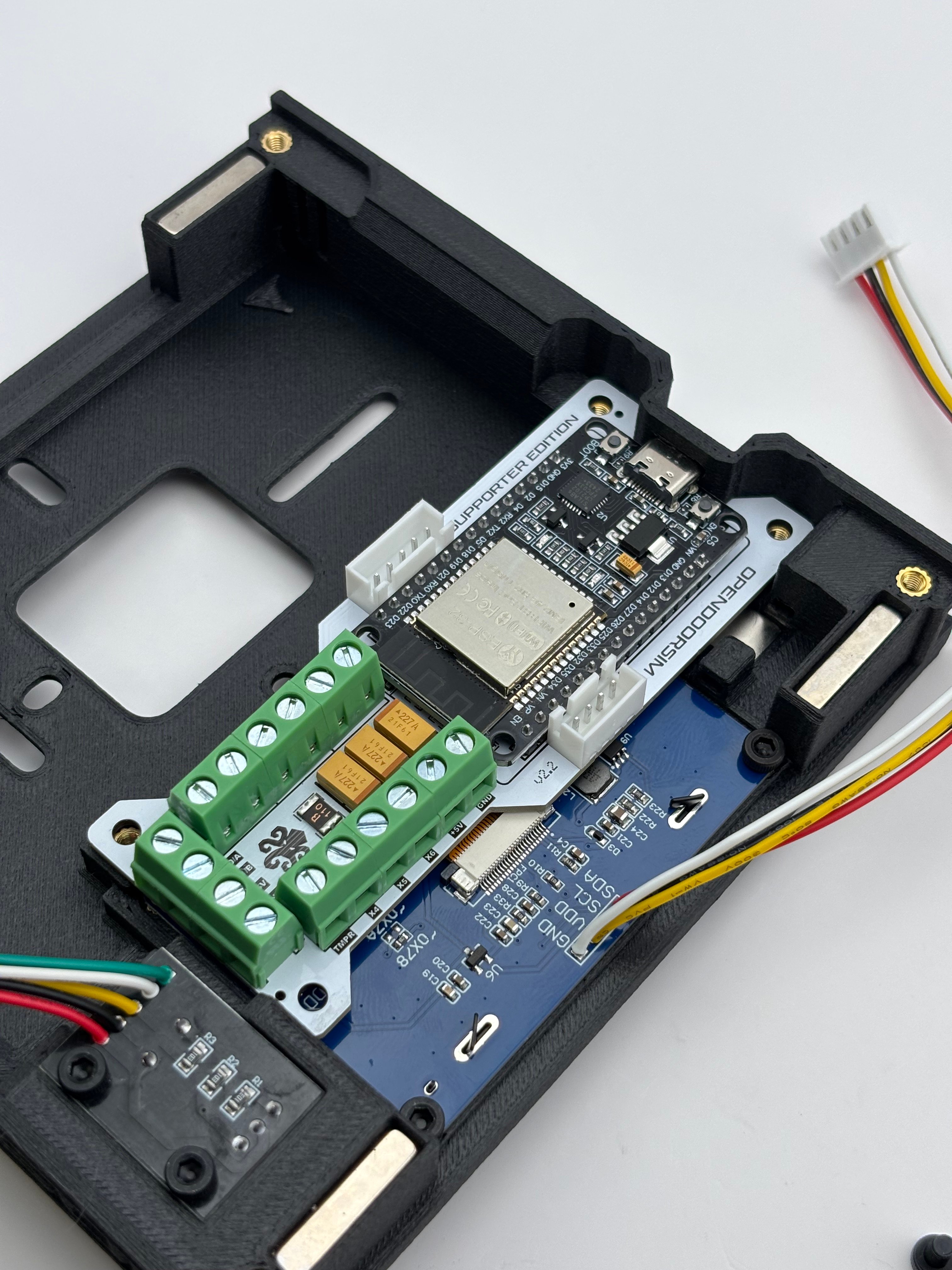

Carefully slide the OpenDoorSim Board into position, pressing down and aligning the USB-C port with the case hole before pressing down and sliding the board into place.
IMG 6068
IMG 6069

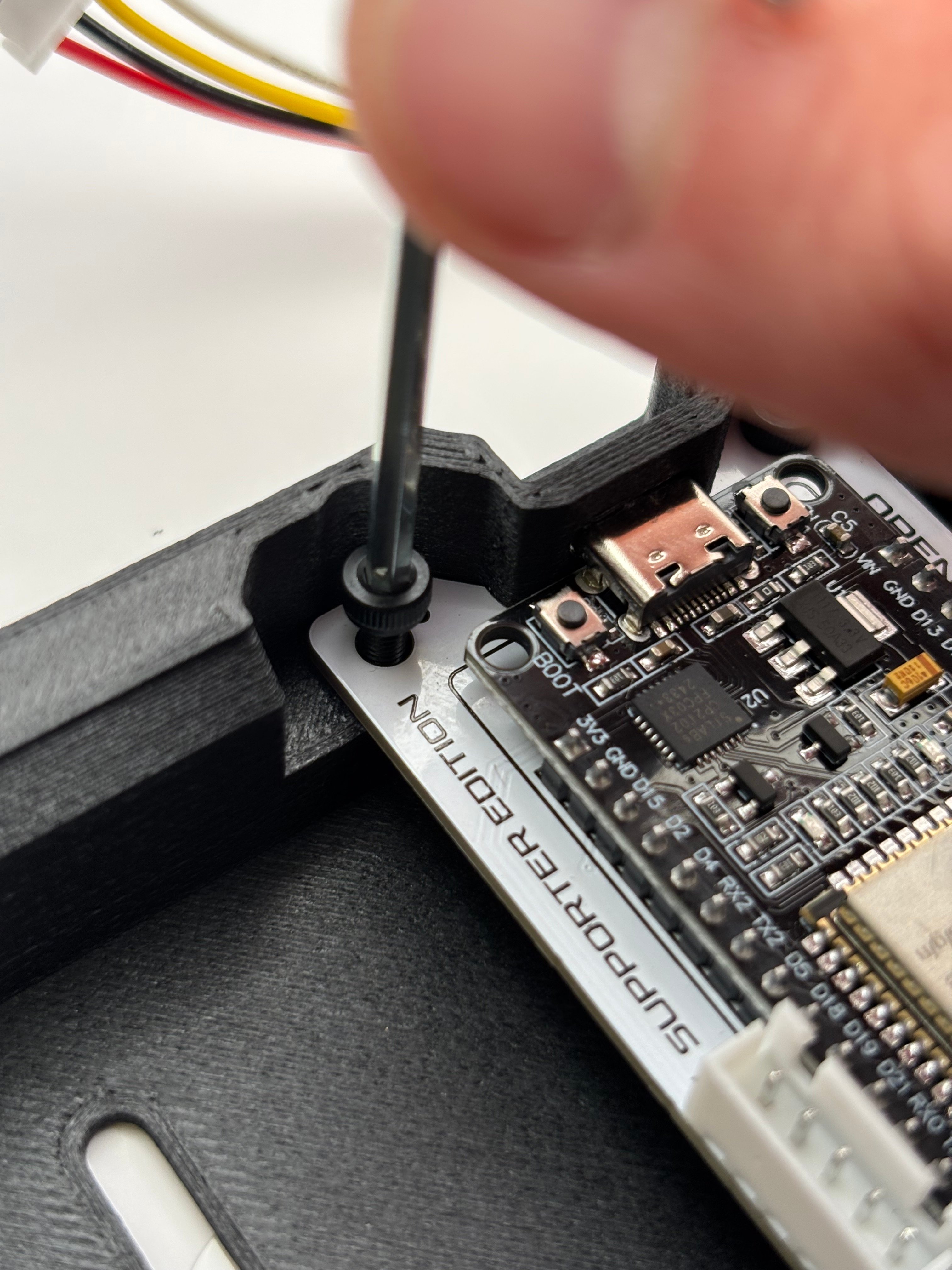

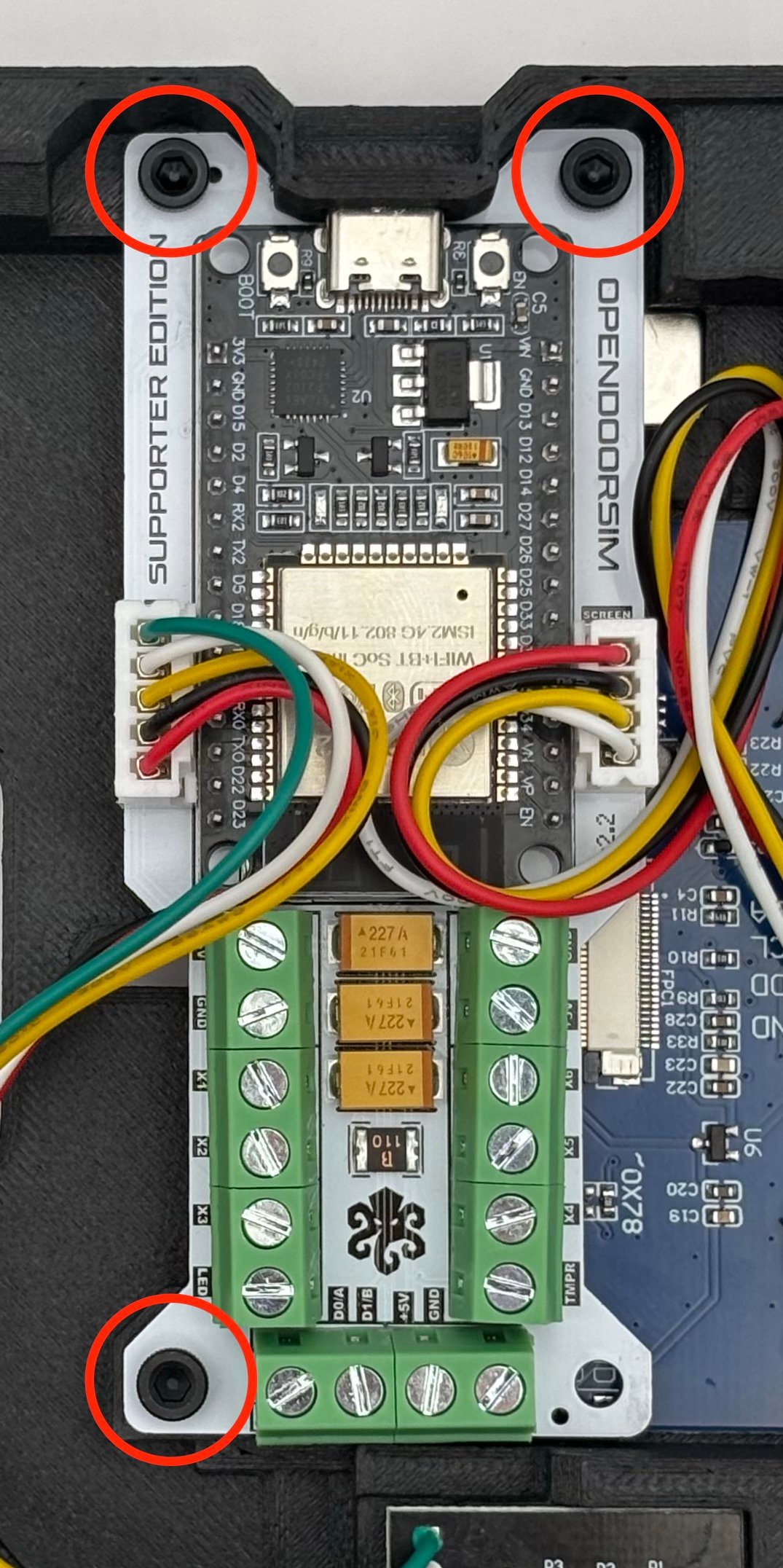

Mount ODS Board using 3x long screws (M3x6)
IMG 6070
IMG 6074
4

Connect Your Reader

Now is a great time to mount your reader of choice to the universal mounting plate, and connect your reader wires to the OpenDoorSim board.For more details, see Connecting a Reader.
5

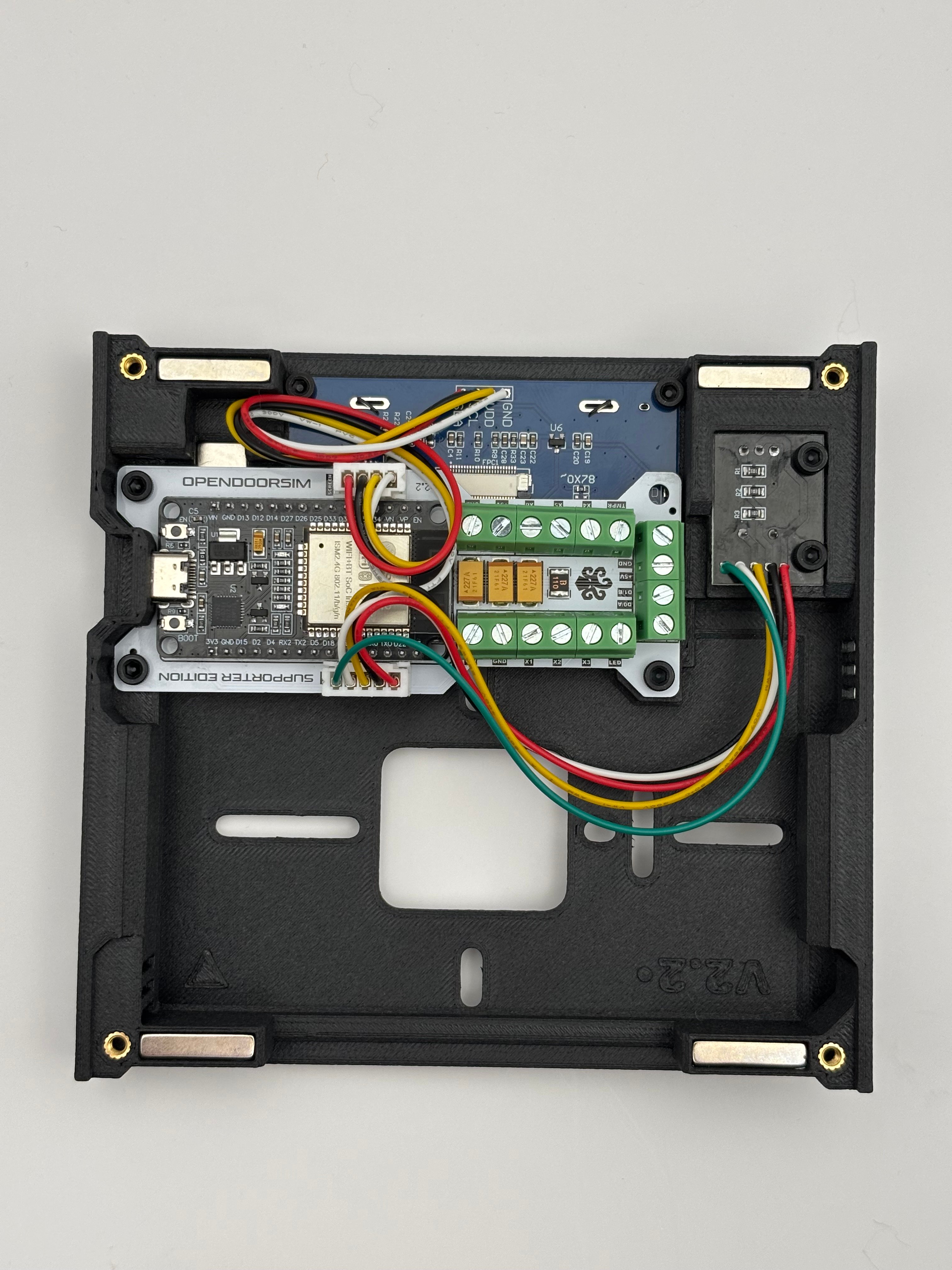

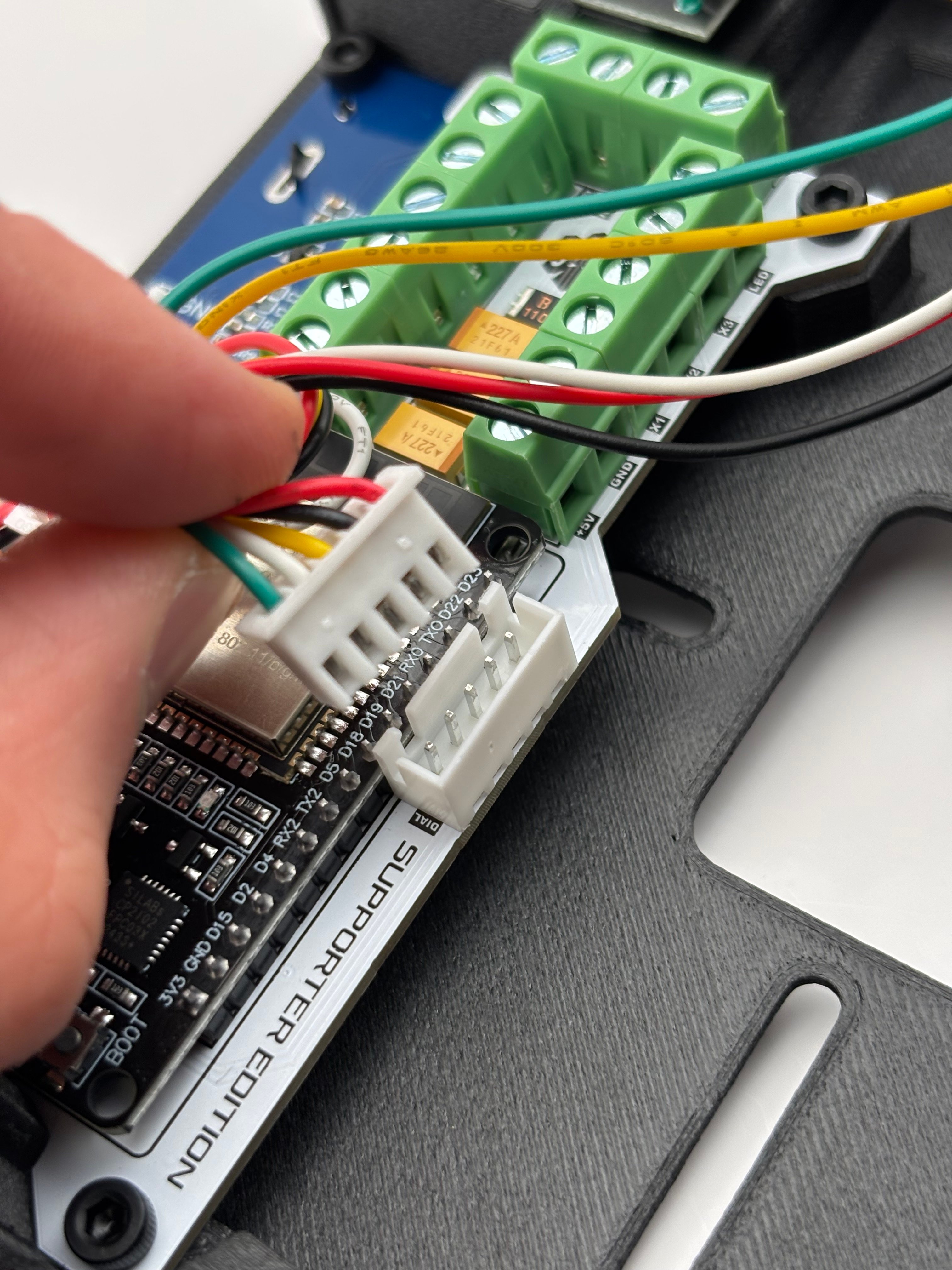

Connect OLED Screen and Encoder

Plug respective JST connectors from each component into their JST socket on the ODS Board.
IMG 6075
IMG 6076
6

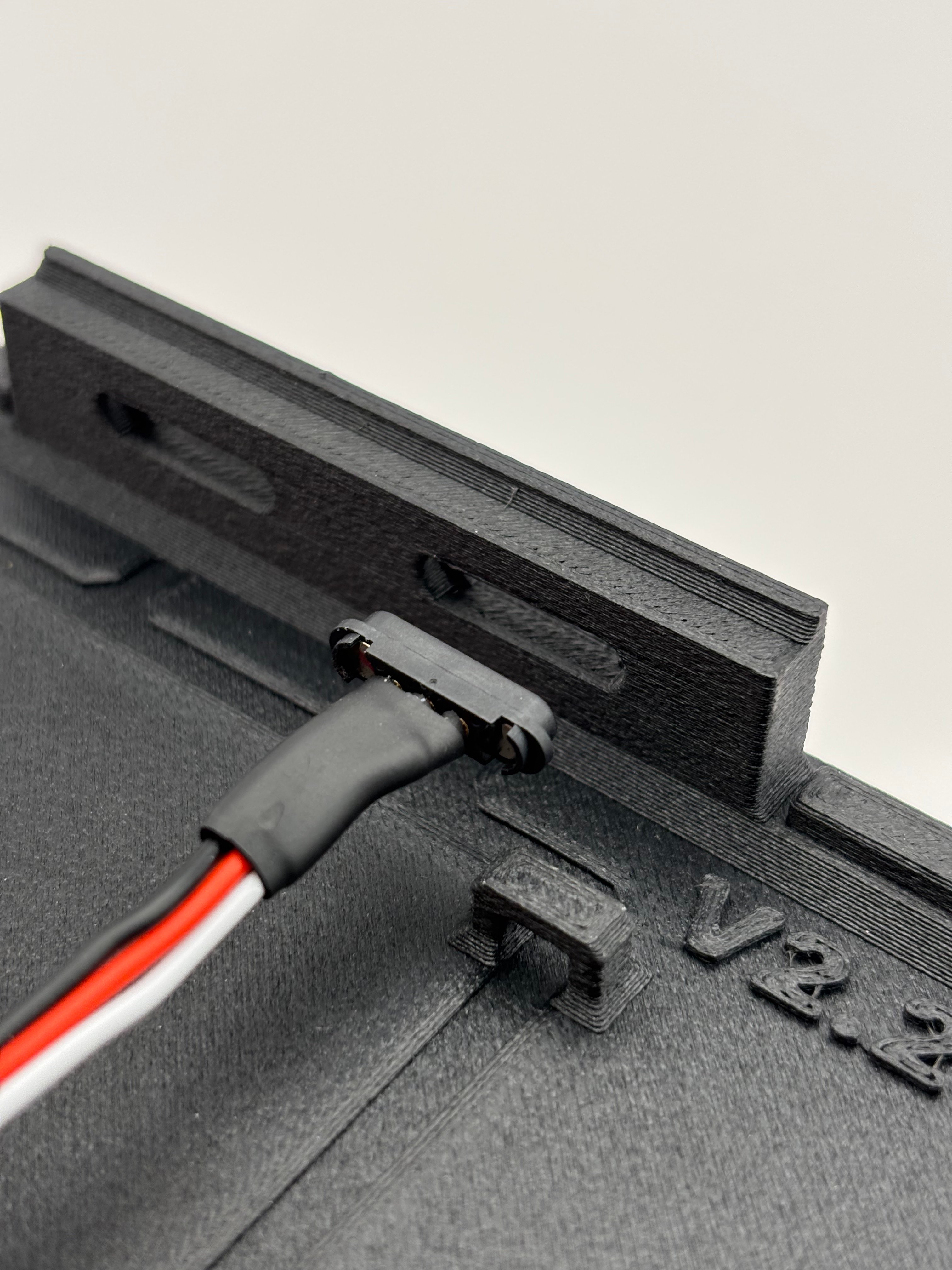

Install Module Wires

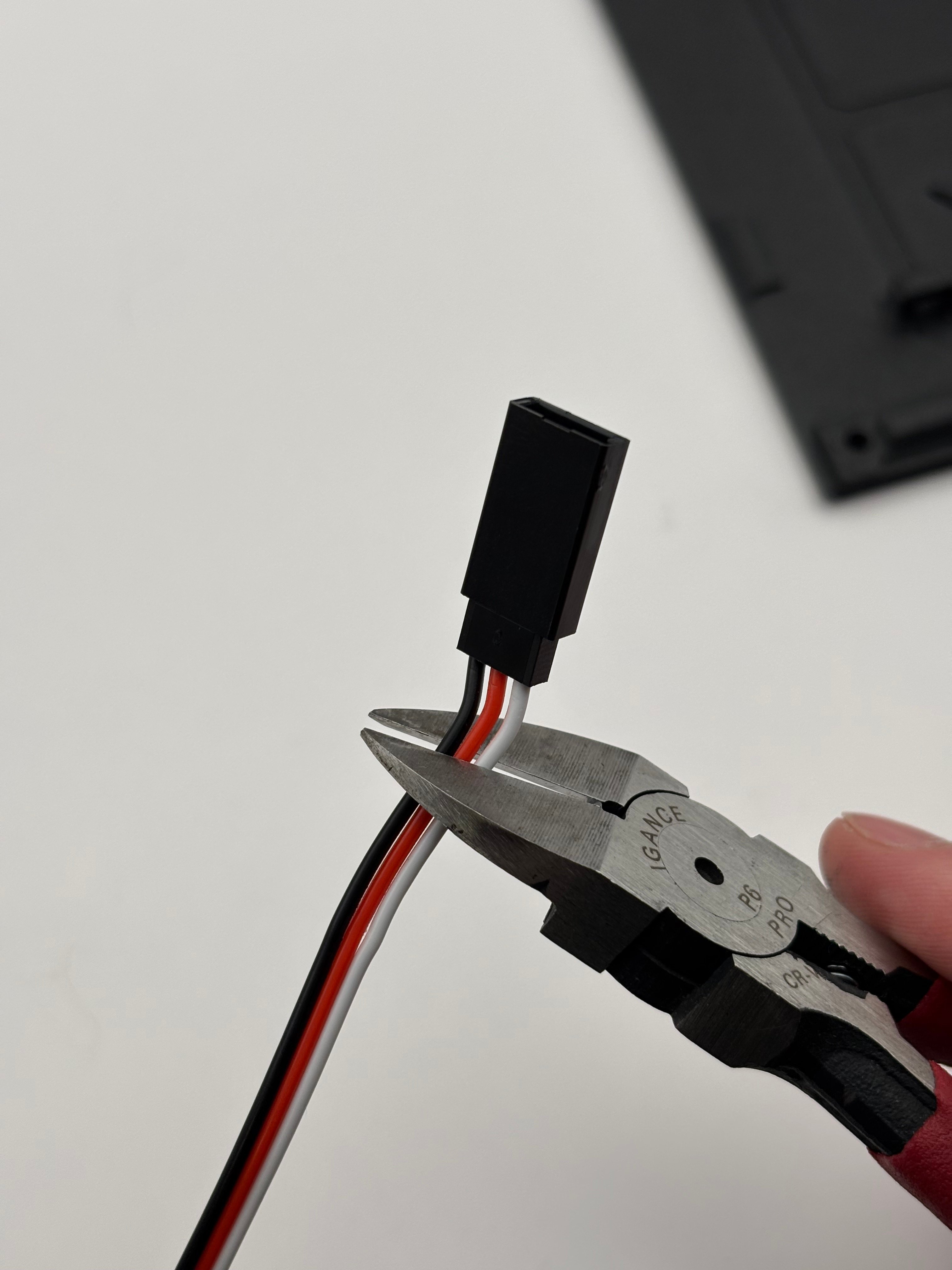

Trim the ends of the 4x module pogo wires.Align the pogo wire with the mounting hole.
IMG 6078
IMG 6084

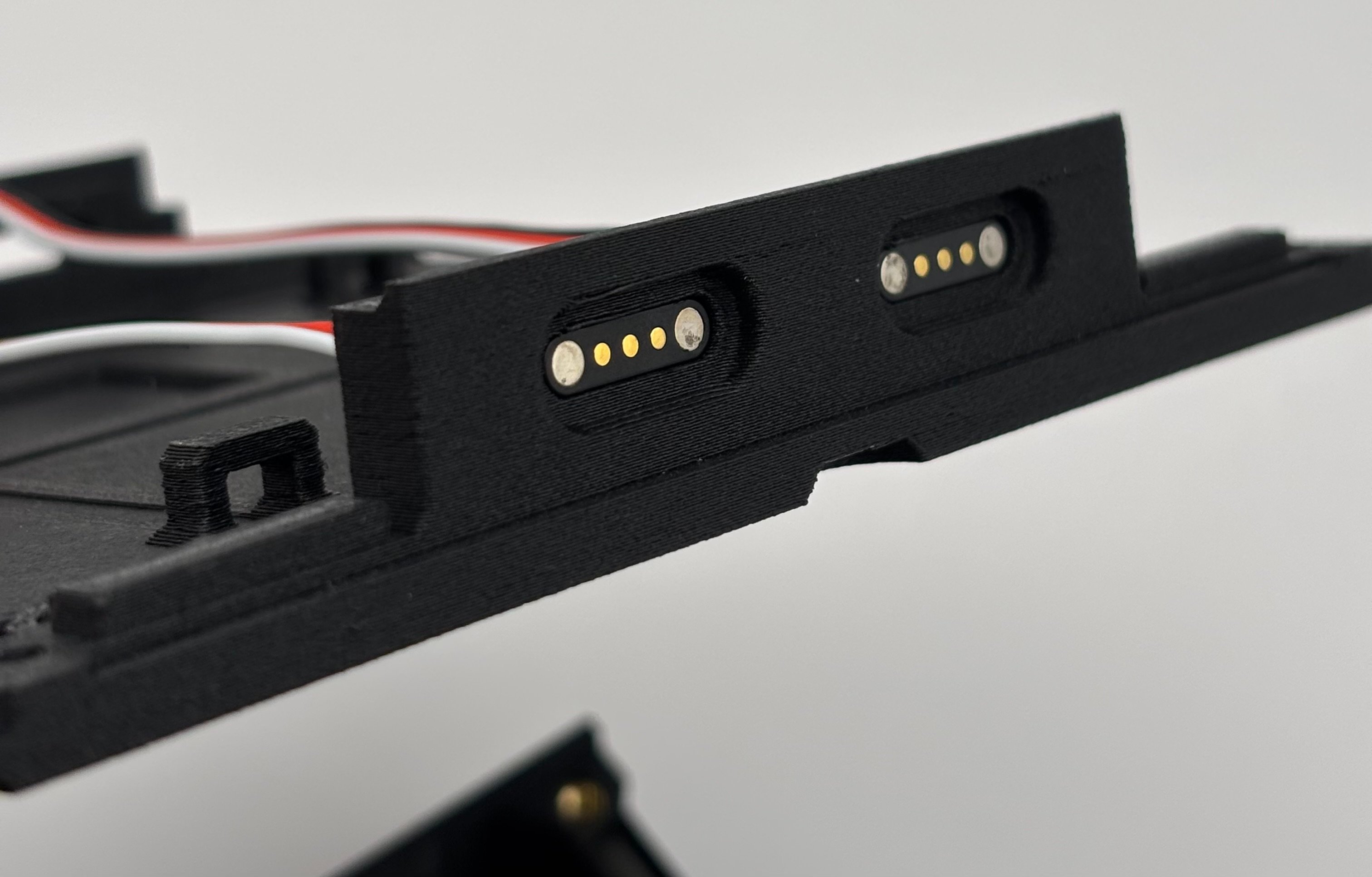

Gently press the 4x module pogo wires into their mounting holes in the case lid.
Be careful not to press directly on the magnets of the pogo wires or you may push them out.
IMG 6086 1

STEP FOUR: CLOSING UP AND FINAL TOUCHES

1

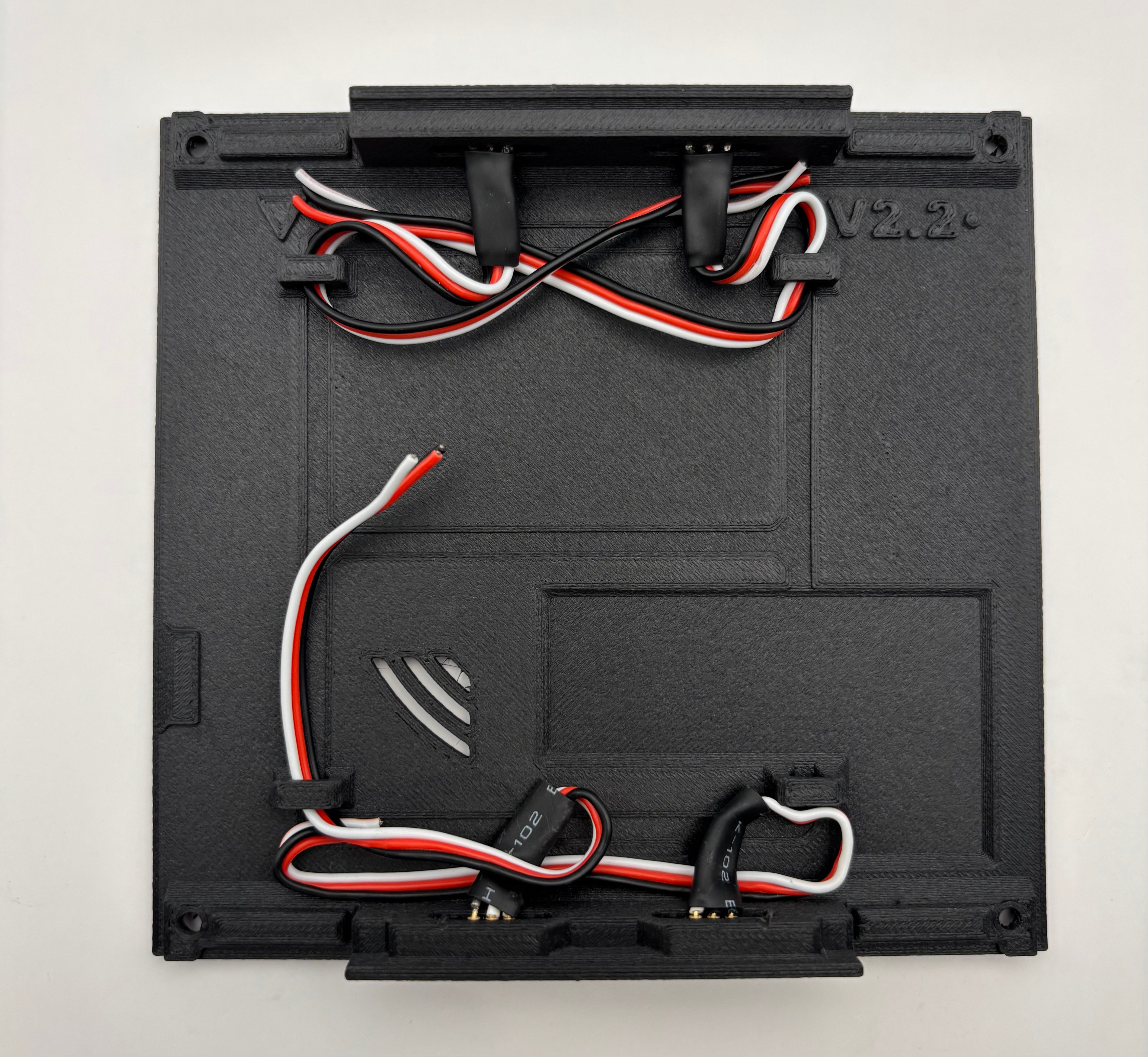

Position Pogo Wires

Position the pogo wires as in the image below.
Failing to position the wires as seen below may result in the case not closing!
IMG 6131
2

(Optional) Run Pogo Wires to GPIO pins

If desired, route the pogo wires to “X” and spare power screw terminals on the ODS board (X1, X2, X3, X4, X5, X6, etc). These are currently open in the hardware / software design for future module implementation.
There are no official modules (yet), and as such, there is no official wiring for module data and power pogo wires. Wire and implement at your own risk!
3

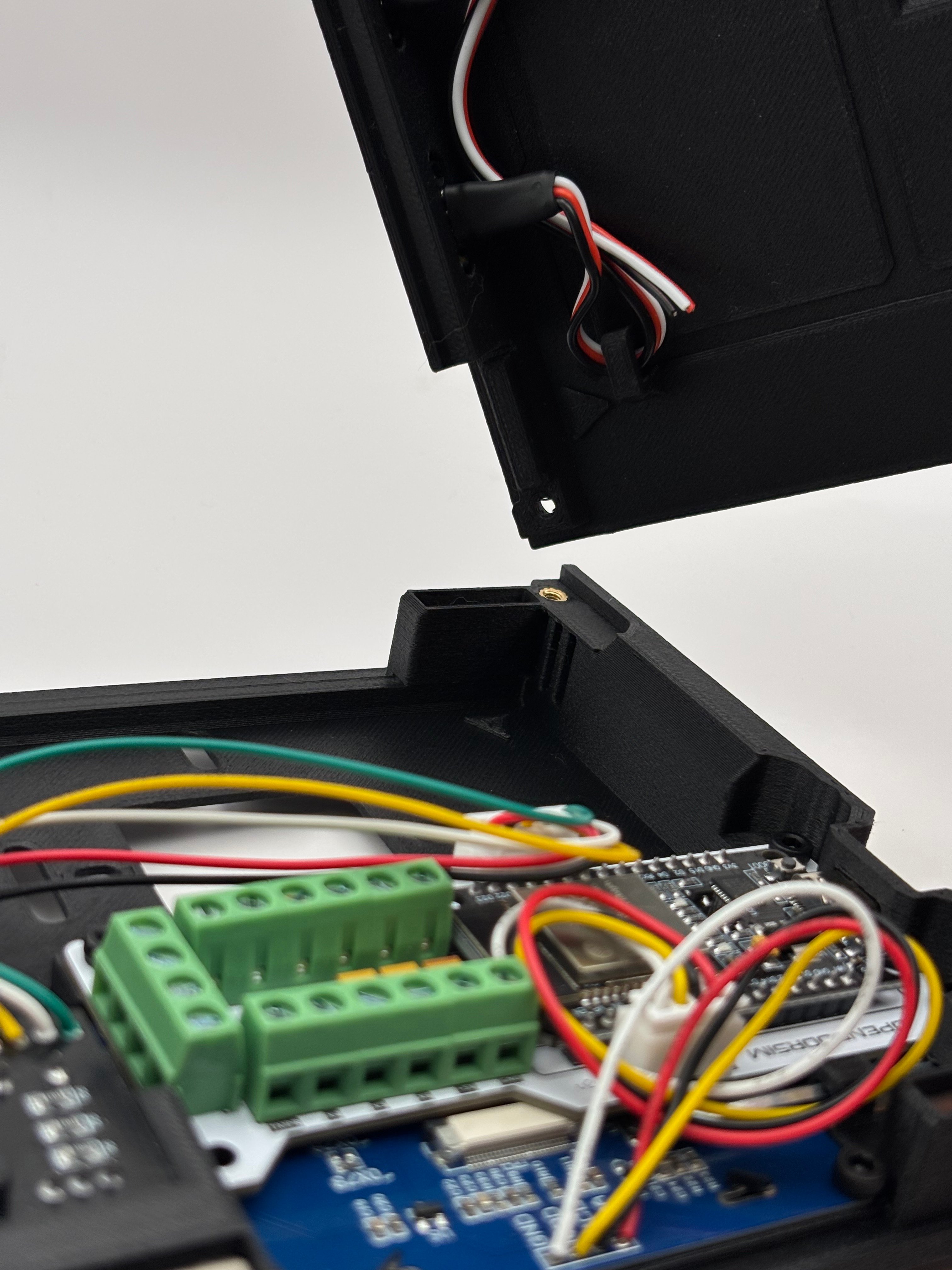

Align and Close Case

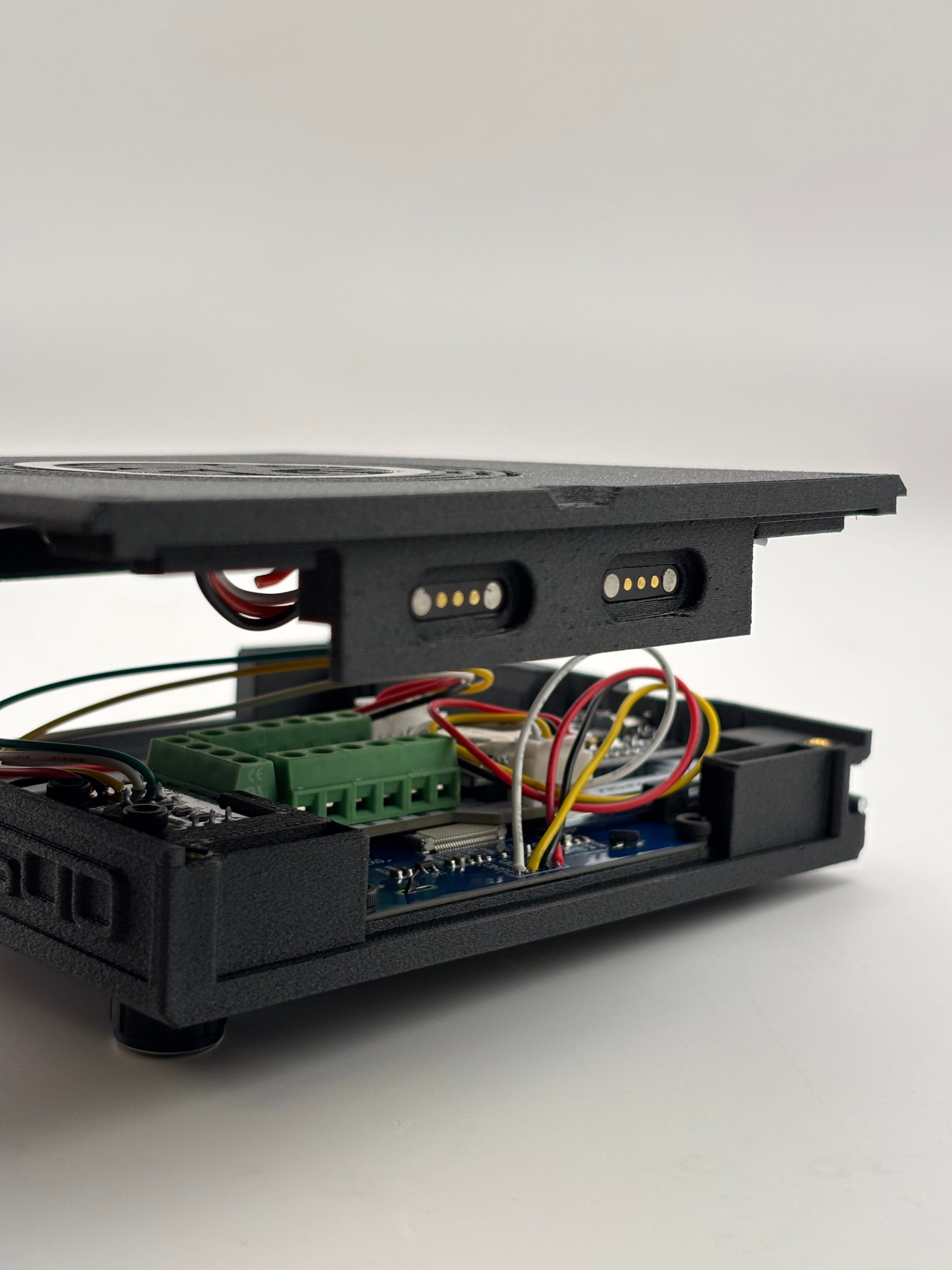

Align triangles on the case body and lid and close gently but firmly. Although it is a tight fit, you should NOT have to force the case closed.
DO NOT FORCE CASE CLOSED. If the case is not closing, there is an alignment issue, or components that are blocking closure or blocking each other. Go back to previous steps, and look inside the case to find the issue and adjust. Once adjusted, the case should close.
IMG 6095
IMG 6094

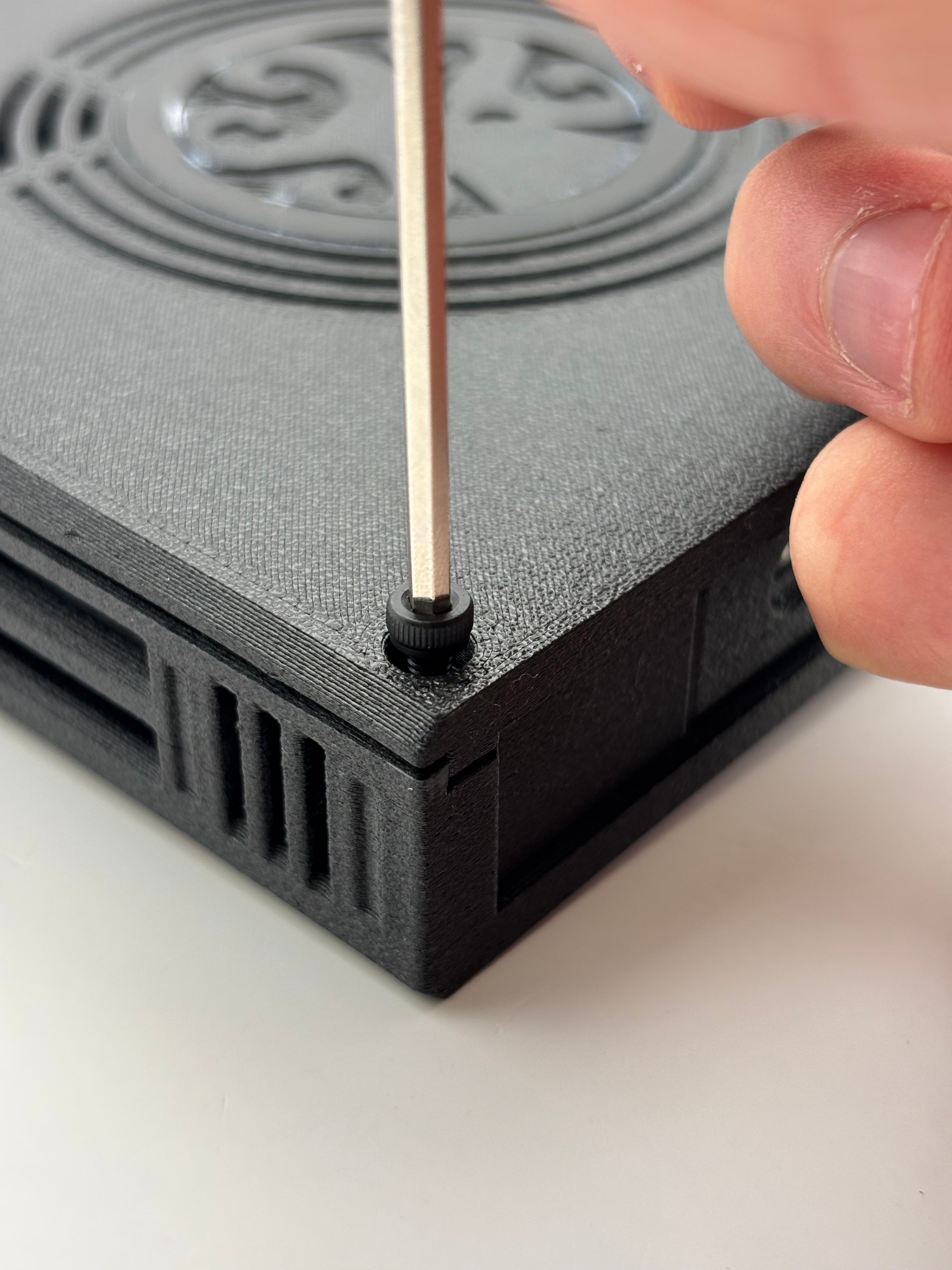

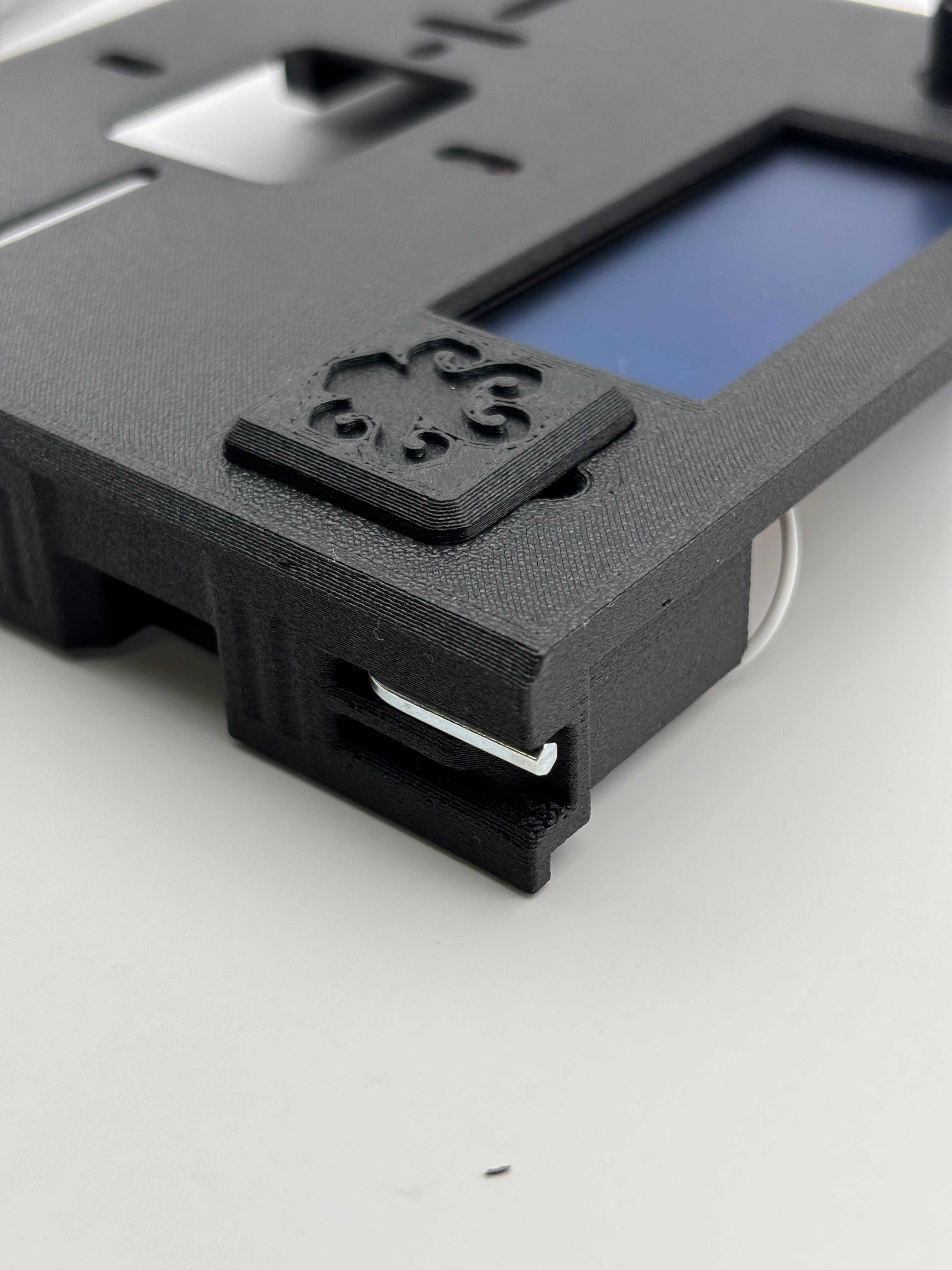

Screw the case closed with the allen key (2.5mm) and the 4x long screws (M3x6).Slide the allen key into the storage slot when finished.
IMG 6100 1
IMG 6093
4

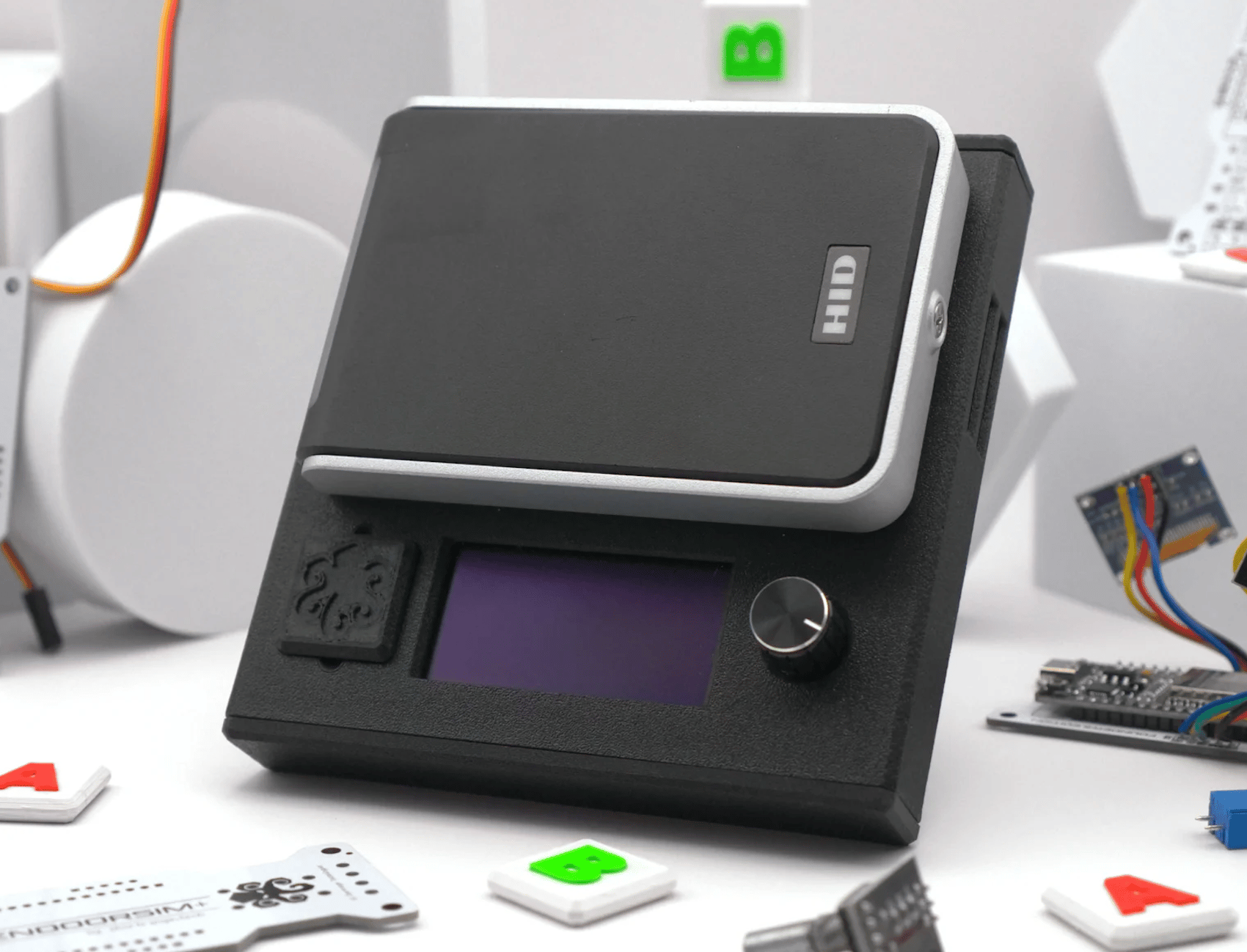

Finish Up

Snap on the decal tile, and end caps… and you’re done!
